片状独石陶瓷电容器汽车 Chip Monolithic Ceramic Capacitors for Automotive
MLCC-多层陶瓷器
立创商城:
33pF ±5% 100V
得捷:
CAP CER 33PF 100V C0G/NP0 0603
艾睿:
You can use multiple capacitors of different parameters choosing this GCM1885C2A330JA16D multilayer ceramic capacitor from Murata! It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 5%. Its capacitance value is 33pF. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
安富利:
Cap Ceramic 33pF 100V C0G 5% SMD 0603 125°C Paper T/R
Chip1Stop:
Cap Ceramic 33pF 100V C0G 5% Pad SMD 0603 125C Automotive T/R
Verical:
Cap Ceramic 33pF 100V C0G 5% Pad SMD 0603 125C Automotive T/R
额定电压DC 100 V
电容 33 pF
容差 ±5 %
电介质特性 C0G/NP0
产品系列 GCM
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±5 %
额定电压 100 V
安装方式 Surface Mount
封装公制 1608
封装 0603

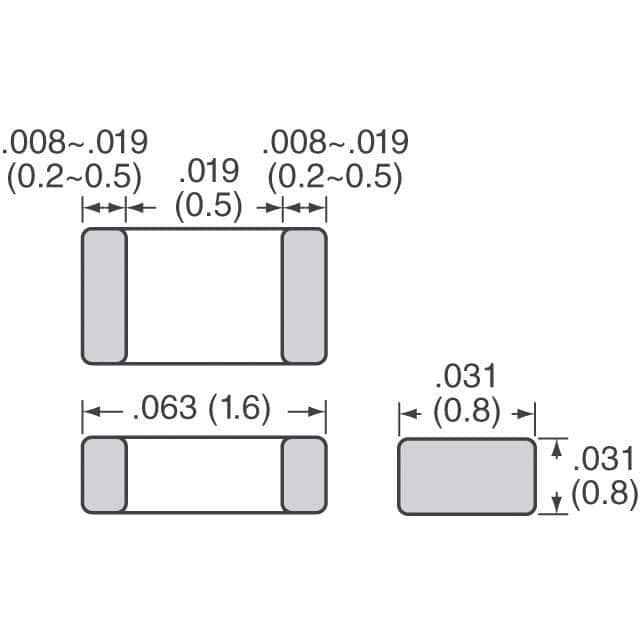

长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GCM1885C2A330JA16D muRata 村田 | 当前型号 | 当前型号 |
06031A330JAT2A 艾维克斯 | 类似代替 | GCM1885C2A330JA16D和06031A330JAT2A的区别 |
GCM1885C2A330JA16J 村田 | 类似代替 | GCM1885C2A330JA16D和GCM1885C2A330JA16J的区别 |
06031A330J4T2A 艾维克斯 | 功能相似 | GCM1885C2A330JA16D和06031A330J4T2A的区别 |
