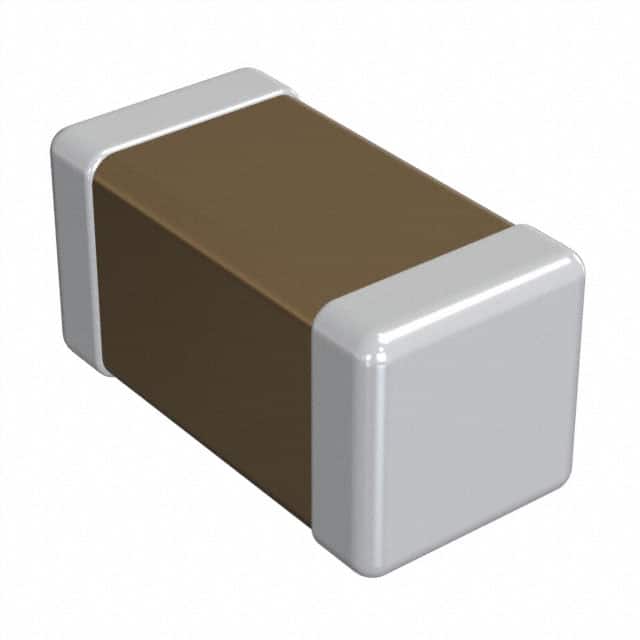

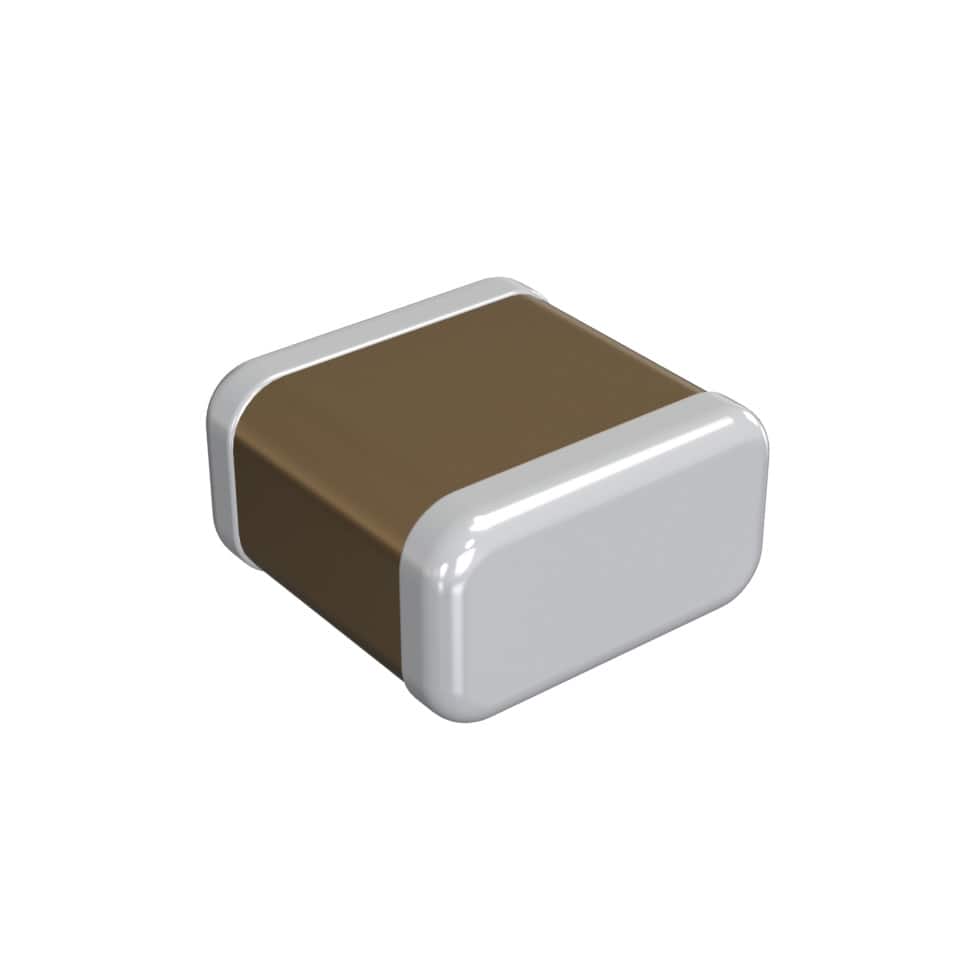

片状独石陶瓷电容器汽车 Chip Monolithic Ceramic Capacitors for Automotive
GCM Series
Features
This product can be used for safety devices, such as the drive system control for engine ECU, air bags, and ABS. This product has cleared test conditions more severe than that of general products GRM Series even in temperature cycle and humidity load tests.
1\. Ideal for power trains and safety devices in automobiles. We also offer a lineup for 150°C that can be used in the engine room.
2\. Can be used at 125°C and 150°C temperatures.
3\. Sn plating is applied to the external electrodes; excellent solder ability.
额定电压DC 100 V
电容 150 pF
容差 ±5 %
电介质特性 C0G/NP0
产品系列 GCM
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±5 %
额定电压 100 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
GCM1885C2A151JA16D muRata 村田 | 当前型号 | 当前型号 |
GCM1885C2A151JA16J 村田 | 完全替代 | GCM1885C2A151JA16D和GCM1885C2A151JA16J的区别 |
06031A151JAT2A 艾维克斯 | 类似代替 | GCM1885C2A151JA16D和06031A151JAT2A的区别 |
GCM1885C1H151JA16D 村田 | 功能相似 | GCM1885C2A151JA16D和GCM1885C1H151JA16D的区别 |
