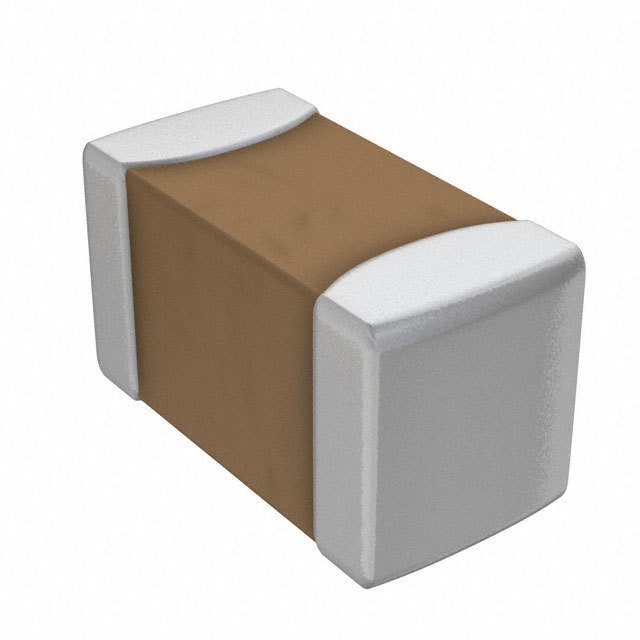

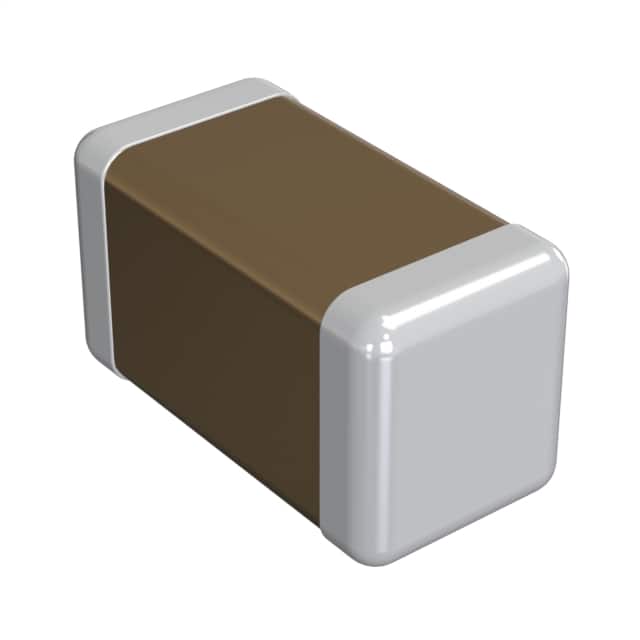

0402 3.3nF ±5% 10V U2J
±5% 10V 陶瓷器 U2J 0402(1005 公制)
立创商城:
3.3nF ±5%
得捷:
CAP CER 3300PF 10V U2J 0402
艾睿:
Do you need a capacitor with high stability and low losses? Then this GRM1557U1A332JA01D multilayer ceramic capacitor from Murata is the solution you are looking for! It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 0.0033uF. It has a tolerance of 5%. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep.
Chip1Stop:
Cap Ceramic 0.0033uF 10V U2J 5% SMD 0402 125℃ T/R
Verical:
Cap Ceramic 0.0033uF 10V U2J 5% Pad SMD 0402 125C T/R
额定电压DC 10.0 V
电容 3300 PF
容差 ±5 %
电介质特性 U2J
产品系列 GRM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 U2J/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GRM1557U1A332JA01D muRata 村田 | 当前型号 | 当前型号 |
GRM1557U1A332JA01J 村田 | 功能相似 | GRM1557U1A332JA01D和GRM1557U1A332JA01J的区别 |
GRM1557U1A332JA01W 村田 | 功能相似 | GRM1557U1A332JA01D和GRM1557U1A332JA01W的区别 |
