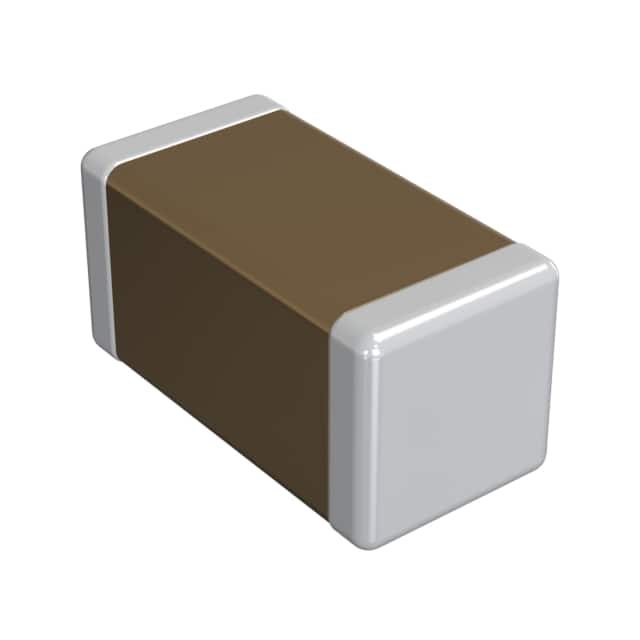

0603 100nF ±10% 16V X7R
0.1µF ±10% 16V Ceramic Capacitor X7R 0603 1608 Metric
欧时:
MLCC - SMD/SMT .1UF 16V 10% 0603
得捷:
CAP CER 0.1UF 16V X7R 0603
立创商城:
100nF ±10% 16V
艾睿:
Due to the use of different ceramic dielectric materials used in this GCJ188R71C104KA01D multilayer ceramic capacitor from Murata, you can choose the right capacitor based on capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 16 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 0.1uF. It has a tolerance of 10%.
安富利:
Cap Ceramic 0.1uF 16V X7R 10% SMD 0603 125°C Paper T/R
Chip1Stop:
Cap Ceramic 0.1uF 16V X7R 10% SMD 0603 125℃ Paper T/R
Verical:
Cap Ceramic 0.1uF 16V X7R 10% Pad SMD 0603 Soft Termination 125C Automotive T/R
额定电压DC 16.0 V
电容 0.1 µF
容差 ±10 %
电介质特性 X7R
产品系列 GCJ
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 0.8 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 汽车级,Boardflex 敏感
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GCJ188R71C104KA01D muRata 村田 | 当前型号 | 当前型号 |
C0603C104K4RACTU 基美 | 类似代替 | GCJ188R71C104KA01D和C0603C104K4RACTU的区别 |
C0603X104K4RACTU 基美 | 类似代替 | GCJ188R71C104KA01D和C0603X104K4RACTU的区别 |
0603B104K160CT 台湾华科 | 类似代替 | GCJ188R71C104KA01D和0603B104K160CT的区别 |
