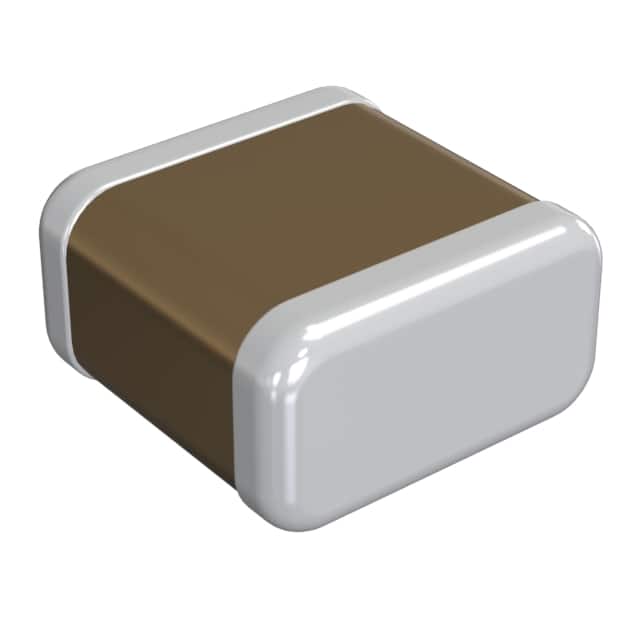

0201 3.9 pF 25 V C0G 0.1 pF 容差 多层陶瓷电容
MLCC-多层陶瓷器
得捷:
CAP CER 3.9PF 25V C0G/NP0 0201
立创商城:
3.9pF ±0.1pF
艾睿:
This GJM0335C1E3R9BB01D multilayer ceramic capacitor from Murata uses different ceramic dielectric materials to achieve a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 3.9pF. This product is 0.6 mm long, 0.3 mm tall and 0.3 mm deep.
Chip1Stop:
Cap Ceramic 3.9pF 25V C0G 0.1pF SMD 0201 125℃ T/R
Verical:
Cap Ceramic 3.9pF 25V C0G 0.1pF Pad SMD 0201 125C T/R
额定电压DC 25.0 V
电容 3.9 pF
容差 ±0.1 pF
电介质特性 C0G/NP0
产品系列 GJM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装公制 1608
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.3 mm
封装公制 1608
封装 0201
厚度 0.3 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 15000
制造应用 RF,微波,高频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GJM0335C1E3R9BB01D muRata 村田 | 当前型号 | 当前型号 |
GJM0335C1E3R9BB01J 村田 | 完全替代 | GJM0335C1E3R9BB01D和GJM0335C1E3R9BB01J的区别 |
CL03C3R9BA3GNNC 三星 | 类似代替 | GJM0335C1E3R9BB01D和CL03C3R9BA3GNNC的区别 |
GJM0335C1E3R9BB01W 村田 | 功能相似 | GJM0335C1E3R9BB01D和GJM0335C1E3R9BB01W的区别 |
