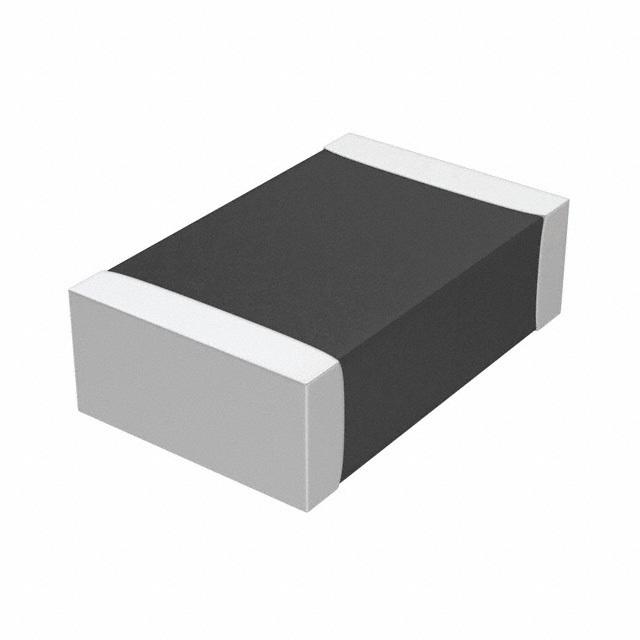

0805 820pF ±5% 50V C0G
■ Features
1\. The GCM series meet AEC-Q200 requirements.
2\. Higher resistance of solder-leaching due to the Ni-barriered termination, applicable for reflow-soldering, and flow-soldering GCM18/21/31 type only.
3\. The operating temperature range of R7/C7/5C series: -55 to 125 degree C.
4\. A wide selection of sizes is available, from miniature LxWxT:0.6x0.3x0.3mm to LxWxT: 3.2x2.5x2.5mm.
5\. The GCM series is available in paper or embossed tape and reel packaging for automatic placement.
6\. The GCM series is lead free product.
■ Applications
Automotive electronic equipment Power-train, safety equipment
额定电压DC 50.0 V
电容 820 pF
容差 ±5 %
电介质特性 C0G/NP0
产品系列 GCM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.6 mm
封装公制 2012
封装 0805
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
GCM2165C1H821JA16D muRata 村田 | 当前型号 | 当前型号 |
08055A821JAT2A 艾维克斯 | 类似代替 | GCM2165C1H821JA16D和08055A821JAT2A的区别 |
GRM2165C1H821JA01D 村田 | 类似代替 | GCM2165C1H821JA16D和GRM2165C1H821JA01D的区别 |
VJ0805A821JXACW1BC 威世 | 类似代替 | GCM2165C1H821JA16D和VJ0805A821JXACW1BC的区别 |
