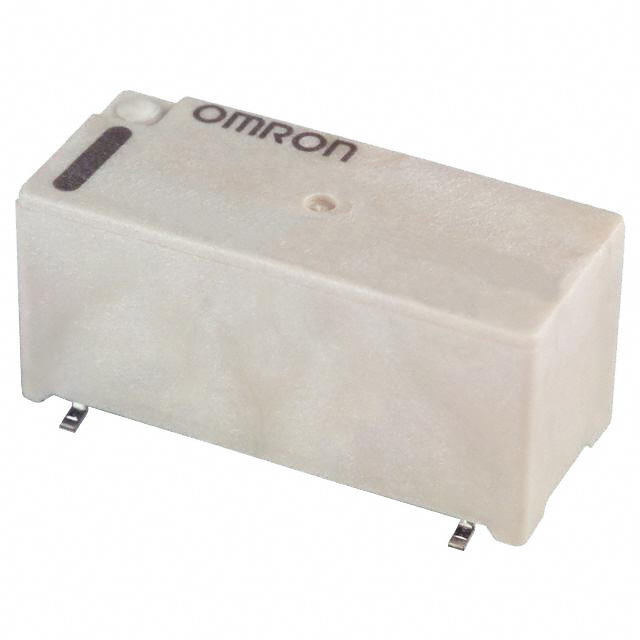

G6Z-1FE DC24

Electromechanical Relay 24VDC 2.88KΩ 0.5A SPDT 20mm 9.6mm 9.3mm SMD High Frequency Relay Automotive

The G6Z series surface-mounting Miniature High-frequency Relay with 2.6GHz band SPDT contacts. It has superior high-frequency characteristics such as an isolation of 30dB minimum, insertion loss of 0.5dB maximum and VSWR of 1.5 maximum at 2.6GHz. It includes models with an E-shape terminal structure same as existing models and models with a Y-shape terminal structure, allowing greater freedom with PCB design. The surface-mounting terminals and superior high frequency characteristics combined using semi tri-plate strip transmission lines.

.

Models with 75R and 50R impedance are available
