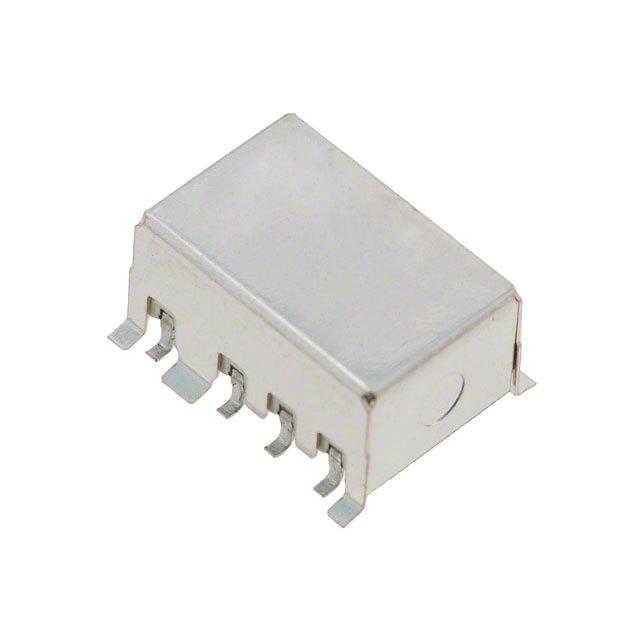

OMRON ELECTRONIC COMPONENTS G6K-2F-RF DC4.5 继电器, 小信号, G6K系列
* Fourth Generation Design
* Design Based on Worldwide Communications, Computer Peripheral and Office Automation Relay Requirements
* Offers Excellent Board Space Savings
* Meets 2.5 kV Bellcore Surge Requirements
* Terminal Design Based on "s Successful G6S Relay
* Available in PCB Through-Hole, SMT Gullwing and SMT "Inside-L" Terminals
* Ambient Temperature Range of -40 to +85°C
* Complies with UL1950 Basic Insulation at 125 V
* Available in Single Coil Latching
* RoHS Compliant
额定电流 1 A
绝缘电阻 1000 MΩ
触点类型 DPDT
线圈电压 4.5 VDC
线圈电流 23.2 mA
线圈电阻 194 Ω
线圈电压DC 4.5 V
额定功率Max 30W, 37.5VA
开关电流Max 1 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压 125 VAC
接触电阻Max 100 mΩ

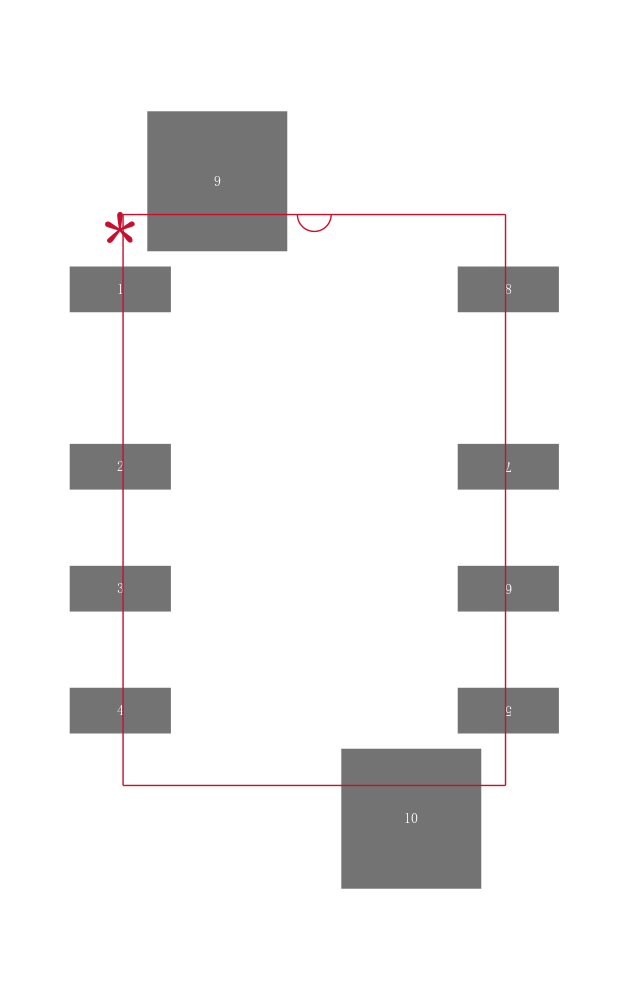

安装方式 Surface Mount
引脚数 8
长度 12.8 mm
宽度 5.4 mm
高度 5.4 mm
触点材质 Silver
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
G6K-2F-RF DC4.5 Omron 欧姆龙 | 当前型号 | 当前型号 |
G6K-2F-RF-TR03 DC4.5 欧姆龙 | 完全替代 | G6K-2F-RF DC4.5和G6K-2F-RF-TR03 DC4.5的区别 |
