0402 6.2pF ±0.05% 50V C0G
±0.05pF 50V 陶瓷器 C0G，NP0 0402（1005 公制）
立创商城:
6.2pF ±0.05pF 50V
得捷:
CAP CER 6.2PF 50V C0G/NP0 0402
艾睿:

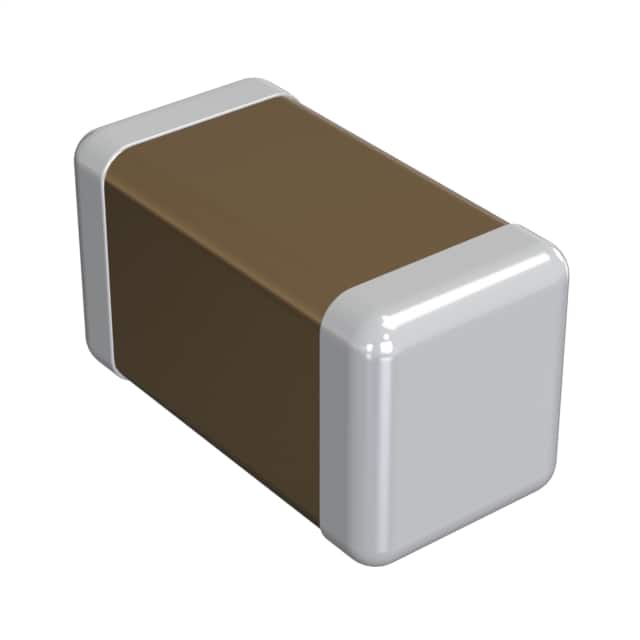

This GJM1555C1H6R2WB01D multilayer ceramic capacitor from Murata is available with a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 1 mm long, 0.5 mm tall and 0.5 mm deep. Its capacitance value is 6.2pF.
安富利:
Cap Ceramic 6.2pF 50V C0G 0.05pF SMD 0402 125°C Paper T/R
Verical:
Cap Ceramic 6.2pF 50V C0G 0.05pF Pad SMD 0402 125C T/R
额定电压DC 50.0 V
电容 6.2 pF
容差 ±0.05 pF
电介质特性 C0G/NP0
产品系列 GJM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1.00 mm
宽度 500 µm
高度 0.5 mm
封装公制 1005
封装 0402
厚度 0.5 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 RF，微波，高频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
