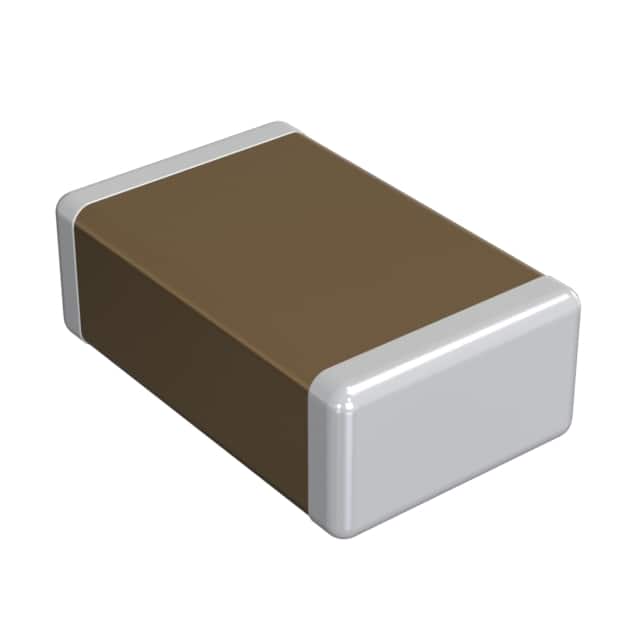

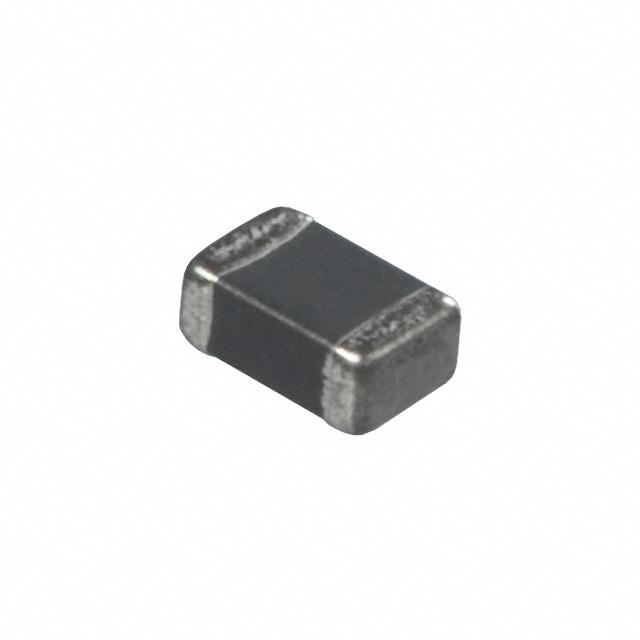

片状独石陶瓷电容器汽车 Chip Monolithic Ceramic Capacitors for Automotive
GCM Series
Features
This product can be used for safety devices, such as the drive system control for engine ECU, air bags, and ABS. This product has cleared test conditions more severe than that of general products GRM Series even in temperature cycle and humidity load tests.
1\. Ideal for power trains and safety devices in automobiles. We also offer a lineup for 150°C that can be used in the engine room.
2\. Can be used at 125°C and 150°C temperatures.
3\. Sn plating is applied to the external electrodes; excellent solder ability.
额定电压DC 100 V
电容 0.0033 µF
容差 ±5 %
电介质特性 C0G/NP0
产品系列 GCM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.6 mm
封装公制 2012
封装 0805
厚度 0.6 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
