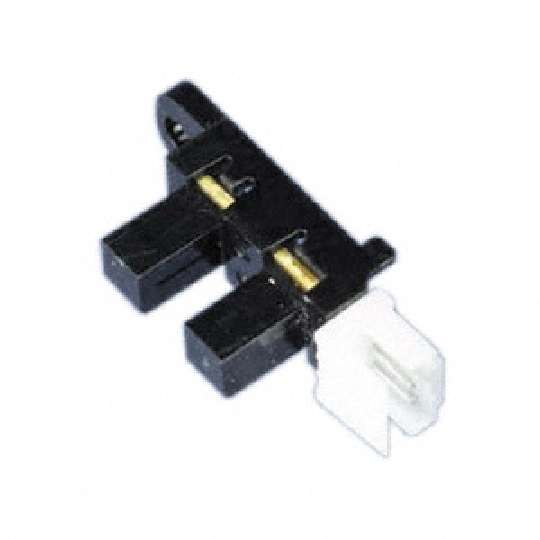

光学开关（透射型，光电IC输出） OPIC Photointerruptr Cnctr Gap/Silt 5.0mm
■ Description
are standard, OPIC output, transmis sive photointerrupters with opposing emitter and detector in a case, providing non-contact sensing. For this family of devices, the emitter and detector are inserted in a case, and a 3-pin connector is included to allow remote mount or off-board designs.
■Features
1\. Transmissive with OPIC output
2\. Highlights :
• Includes additional screw fixing holes
• Straight drop insertion
3\. Key Parameters :
• Gap Width : 5mm
• Slit Width detector side: 0.5mm
• Package : 24×12.8×8mm without connector and hooks
• Connector : Tyco Electronics AMP PN : 292133-3
• Output Type : Low when the object is present.
4\. Lead free and RoHS directive compliant
■Agency approvals/Compliance
1\. Compliant with RoHS directive
■Applications
1\. General purpose detection of object presence or motion.
2\. Example: PPC, FAX, Printer
