GBPC25005-E4/51

VISHAY  GBPC25005-E4/51  二极管 桥式整流, 单相, 50 V, 25 A, 模块, 1.1 V, 4 引脚

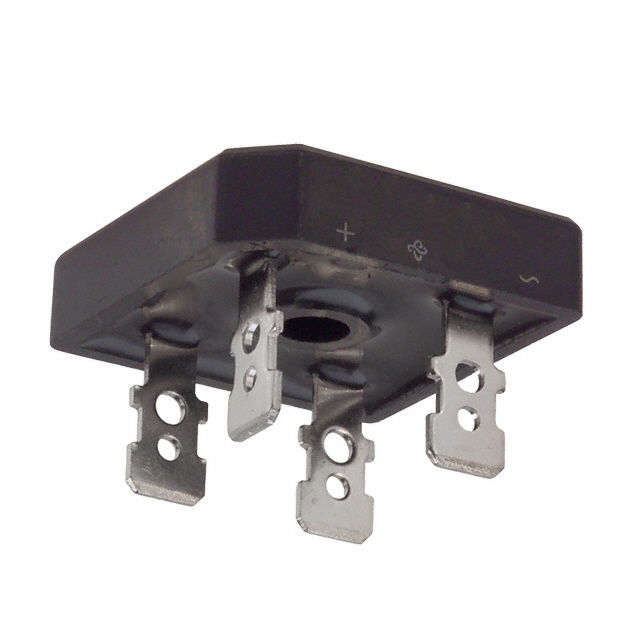

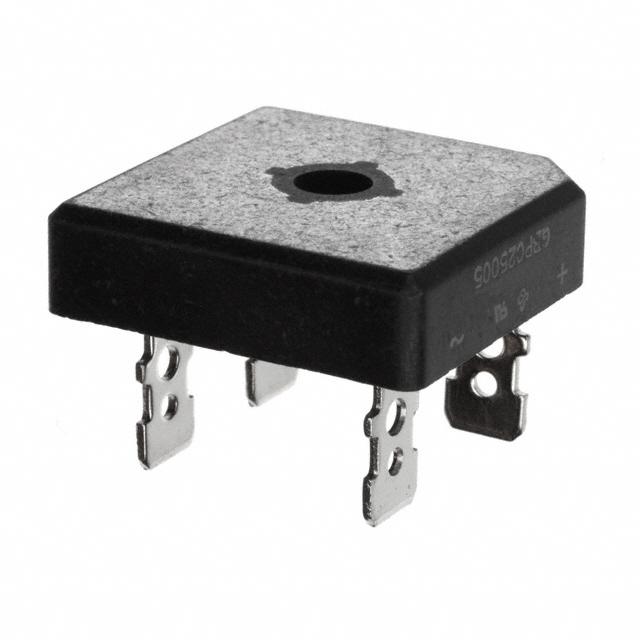

The is a 4-pin single-phase glass passivated Bridge Rectifier Diode with high surge current capability. It is general purpose use in AC/DC bridge full wave rectification for home appliances, office equipment and telecommunication applications.

.

UL94V-0 Flammability rating

.

<0.3µA Typical IR

.

Nickel plated on Faston lugs solderable per J-STD-002 and JESD22-B102 terminals

.

Low thermal resistance

.

Solder dip 275°C maximum 10s, per JESD 22-B106

.

UL recognition file number E54214

.

35V Maximum RMS voltage

.

-55 to 150°C Operating junction temperature range
