GW12RCP

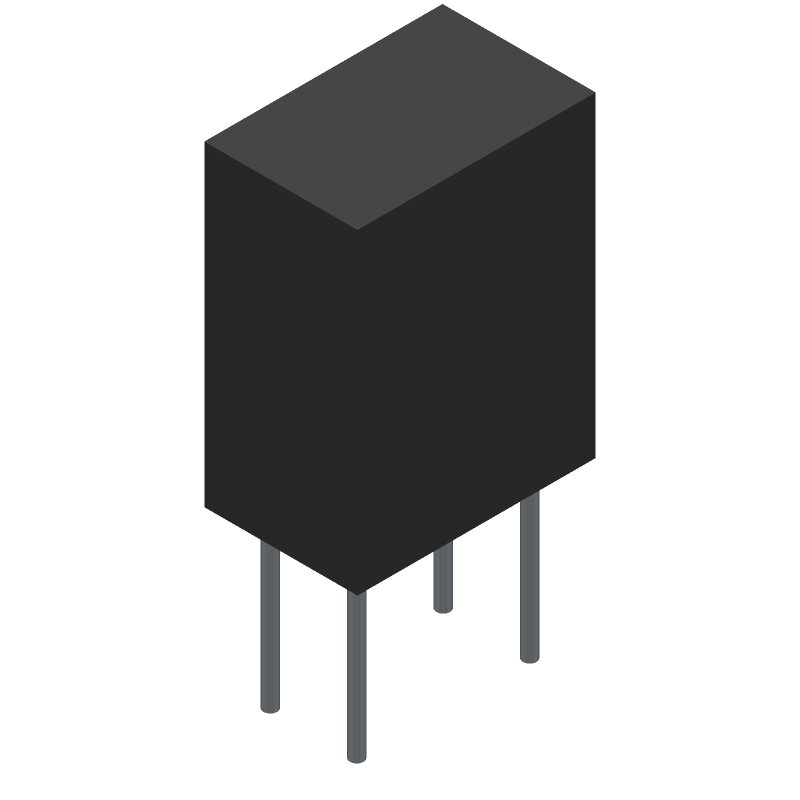

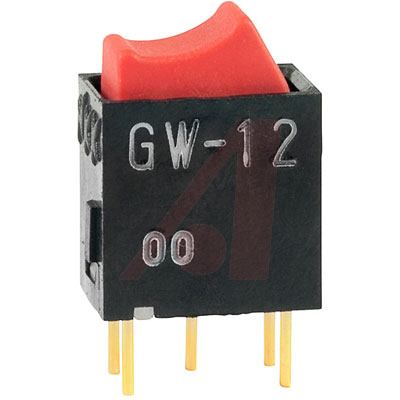

GW12RCP图片1
GW12RCP图片2
GW12RCP图片3
GW12RCP图片4
GW12RCP图片5
GW12RCP图片6
GW12RCP图片7
GW12RCP图片8
GW12RCP图片9
GW12RCP图片10
GW12RCP概述

NKK SWITCHES  GW12RCP  船型开关, SPDT, 0.1A, 28VAC, 红色

摇臂 SPDT 0.4VA(AC/DC) 28 V 通孔


得捷:
SWITCH ROCKER SPDT 0.4VA 28V


e络盟:
船型开关, SPDT, 0.1A, 28VAC, 红色


艾睿:
This GW12RCP rocker switch from NKK Switches will turn your project on and off when pressed. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This rocker switch panel has a minimum operating temperature of -30 °C and a maximum of 85 °C. The GW12RCP rocker switch panel has a PC pin termination style. This product is 7.5 mm long, 9.3 mm tall and 5 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.


Allied Electronics:
Switch; Thin Rocker; SPDT; ON-NONE-ON; Red Actuator; 0.4VA; 28VAC/DC; Str PC


Chip1Stop:
Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles


Verical:
Switch Rocker ON None ON SPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles


Newark:
# NKK SWITCHES  GW12RCP  Rocker Switch, Non Illuminated, SPDT, On-None-On, Red, Through Hole, 100 mA


Powell:
ULTRA MINIATURE ROCKER/PC


GW12RCP中文资料参数规格
技术参数

触点电镀 Gold

额定电压DC 28 V

接触器类型 Rocker

额定电压AC 28 V

额定电流 0.1 A

排数 1

方向 Vertical

触点类型 SPDT

额定电流Max 0.1A @28VAC, 28VDC

工作温度Max 85 ℃

工作温度Min -30 ℃

接触电阻Max 80 mΩ

封装参数

安装方式 Through Hole

外形尺寸

长度 7.5 mm

高度 9.3 mm

物理参数

颜色 Red

触点材质 Gold

工作温度 -30℃ ~ 85℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

GW12RCP引脚图与封装图
GW12RCP引脚图
GW12RCP封装焊盘图
