GCM31A7U2E472JX01D概述

片状独石陶瓷电容器汽车 Chip Monolithic Ceramic Capacitors for Automotive

MLCC-多层陶瓷器


得捷:
CAP CER 4700PF 250V U2J 1206


立创商城:
4.7nF ±5% 250V


贸泽:
Multilayer Ceramic Capacitors MLCC - SMD/SMT 1206 4700pF 250volts U2J 5%


艾睿:
Do you need a capacitor with high stability and low losses? Then this GCM31A7U2E472JX01D multilayer ceramic capacitor from Murata is the solution you are looking for! It can withstand a voltage of 250 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its capacitance value is 0.0047uF. This product is 3.2 mm long, 1 mm tall and 1.6 mm deep. It has a tolerance of 5%.


安富利:
Cap Ceramic 0.0047uF 250V U2J 5% SMD 1206 125°C Paper T/R


Verical:
Cap Ceramic 0.0047uF 250V U2J 5% Pad SMD 1206 125C Automotive T/R


儒卓力:
**KC 4,7nF 1206 5% 250V N750 AECQ **


GCM31A7U2E472JX01D中文资料参数规格
技术参数

额定电压DC 250 V

电容 0.0047 µF

容差 ±5 %

电介质特性 U2J

产品系列 GCM

工作温度Max 125 ℃

工作温度Min 55 ℃

额定电压 250 V

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

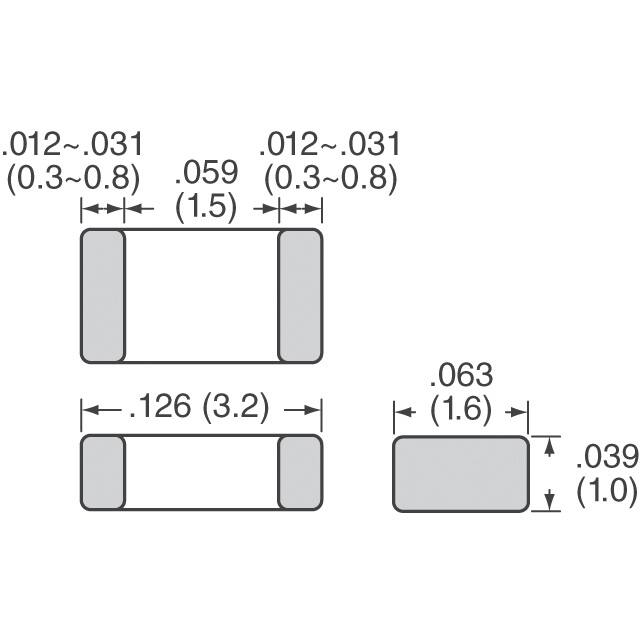

外形尺寸

长度 3.2 mm

宽度 1.6 mm

高度 1 mm

封装公制 3216

封装 1206

厚度 1.0 mm

物理参数

材质 U2J/-55℃~+125℃

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 4000

制造应用 汽车级

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买GCM31A7U2E472JX01D
型号: GCM31A7U2E472JX01D
制造商: muRata 村田
描述:片状独石陶瓷电容器汽车 Chip Monolithic Ceramic Capacitors for Automotive
替代型号GCM31A7U2E472JX01D
型号/品牌 代替类型 替代型号对比

GCM31A7U2E472JX01D

muRata 村田

当前型号

当前型号

GRM31A7U2E472JW31D

村田

类似代替

GCM31A7U2E472JX01D和GRM31A7U2E472JW31D的区别
