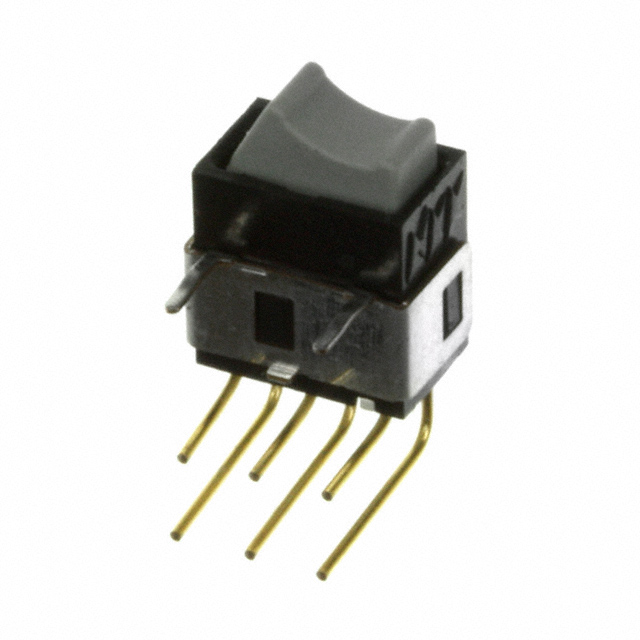

GW22RHH

Switch Rocker ON None ON DPDT PC Pins Curved Rocker 0.1A 28VAC 28VDC 0.4VA 50000Cycles

* 0.4VA Logic Level; Straight, Right Angle and Vertical PCB Mount

* Ultra-Thin Rocker Switches

* Rocker and paddle actuators in a variety of colors.

* Dust cover and closely fit housing, actuator, and interior pivot provide protection for contacts.

* Detent mechanism for rocker/paddle is designed for crisp and positive actuation.

* Patented sliding twin crossbar STC mechanism provides unequalled logic-level reliability, and smoother, positive detent actuation.

* Extremely thin size allows for high-density PCB mounting, and makes these switches ideal for handheld equipment.

* Molded-in, epoxy sealed terminals lock out flux and other contaminants.

* .100" X .100" terminal spacing conforms to standard PC board grid spacing for straight and angle
