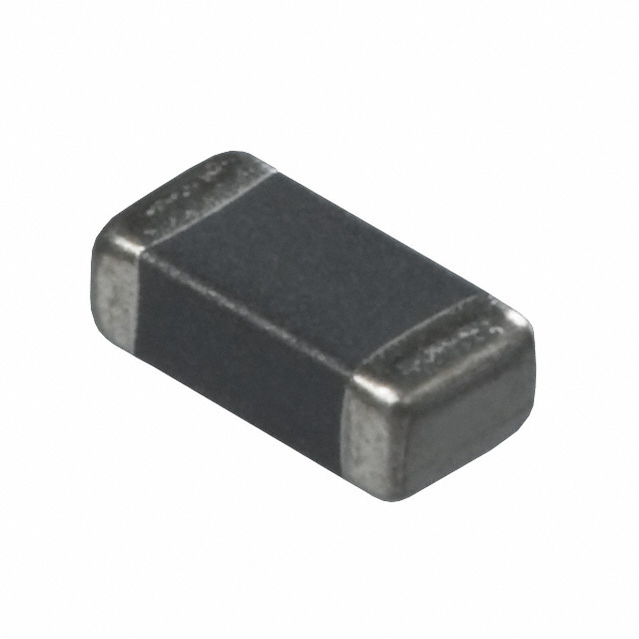

1206 5.6nF ±5% 100V C0G
■ Features
1\. The GCM series meet AEC-Q200 requirements.
2\. Higher resistance of solder-leaching due to the Ni-barriered termination, applicable for reflow-soldering, and flow-soldering GCM18/21/31 type only.
3\. The operating temperature range of R7/C7/5C series: -55 to 125 degree C.
4\. A wide selection of sizes is available, from miniature LxWxT:0.6x0.3x0.3mm to LxWxT: 3.2x2.5x2.5mm.
5\. The GCM series is available in paper or embossed tape and reel packaging for automatic placement.
6\. The GCM series is lead free product.
■ Applications
Automotive electronic equipment Power-train, safety equipment
额定电压DC 100 V
电容 0.0056 µF
容差 ±5 %
电介质特性 C0G/NP0
产品系列 GCM
工作温度Max 125 ℃
工作温度Min 55 ℃
额定电压 100 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.85 mm
封装公制 3216
封装 1206
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
