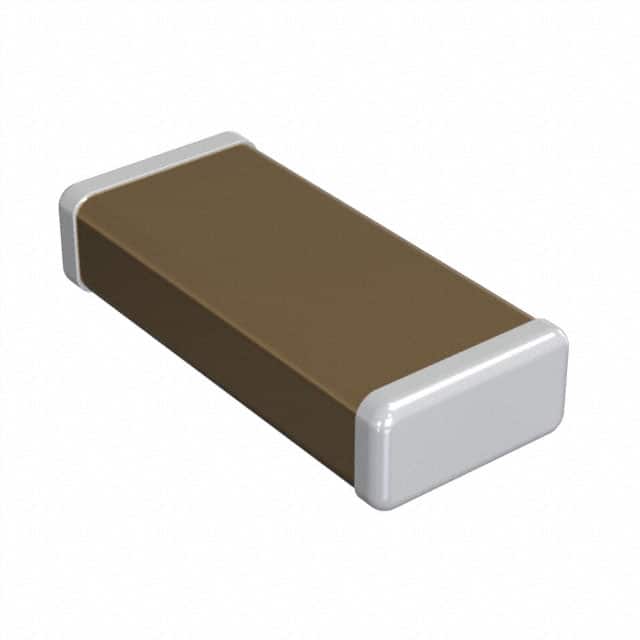

片状独石陶瓷电容器 Chip Monolithic Ceramic Capacitors
47pF ±5% 3150V 3.15kV Ceramic Capacitor U2J 1808 4520 Metric
立创商城:
47pF ±5%
得捷:
CAP CER 47PF 3.15KV U2J 1808
艾睿:
Use its standard classification system to find out what this GRM42A7U3F470JW31L multilayer ceramic capacitor from Murata can do for you! It can withstand a voltage of 3150 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its capacitance value is 47pF. This product is 4.5 mm long, 1 mm tall and 2 mm deep. It has a tolerance of 5%.
安富利:
Cap Ceramic 47pF 3150V U2J 5% SMD 1808 125°C Embossed T/R
Verical:
Cap Ceramic 47pF 3150V U2J 5% Pad SMD 1808 125C T/R
额定电压DC 3.15 kV
电容 47 pF
容差 ±5 %
电介质特性 U2J
产品系列 GRM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 3150 V
安装方式 Surface Mount
封装公制 4520
封装 1808
长度 4.50 mm
宽度 2.00 mm
高度 1 mm
封装公制 4520
封装 1808
厚度 1.0 mm
材质 U2J/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
