GD75232DWE4

TEXAS INSTRUMENTS  GD75232DWE4  线路接收器, RS232, 3驱动器, 4.5V-15电源, SOIC-20

The is a RS-232 multiple Driver and Receiver combines 3 drivers and 5 receivers from the Texas Instruments trade-standard SN75188 and SN75189 bipolar quadruple drivers and receivers respectively. The pin-out matches the flow-through design of the SN75C185 to decrease the part count, reduces the board space required and allow easy interconnection of the UART and serial-port connector of an IBM PC/AT and compatibles. The bipolar circuits and processing of the GD75232 provide a rugged, solution for this function at the expense of quiescent power and external passive components relative to the SN75C185. It complies with the requirements of the A/EIA-232-F and ITU formerly CCITT V.28 standard. This standard is for data interchange between a host computer and a peripheral at signalling rates up to 20kbps. The switching speeds of these devices are fast enough to support rates up to 120kbps with lower capacitive loads shorter cables.

.

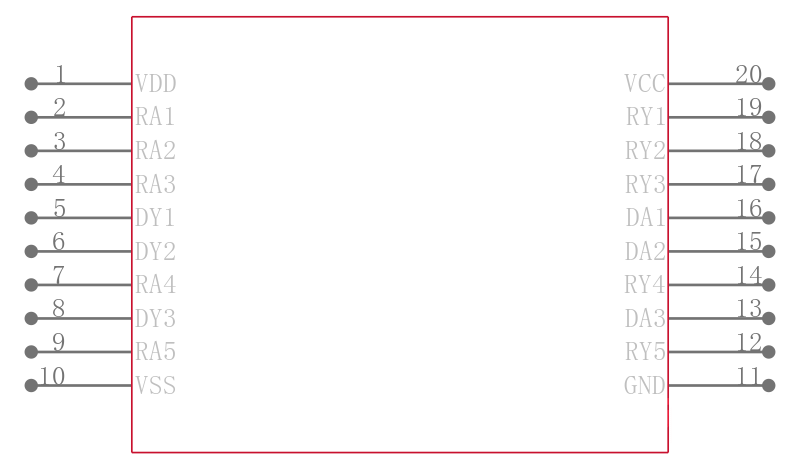

Pin-out compatible with SN75C185 and SN75185

.

Designed to support data rates up to 120kbps

.

Green product and no Sb/Br
