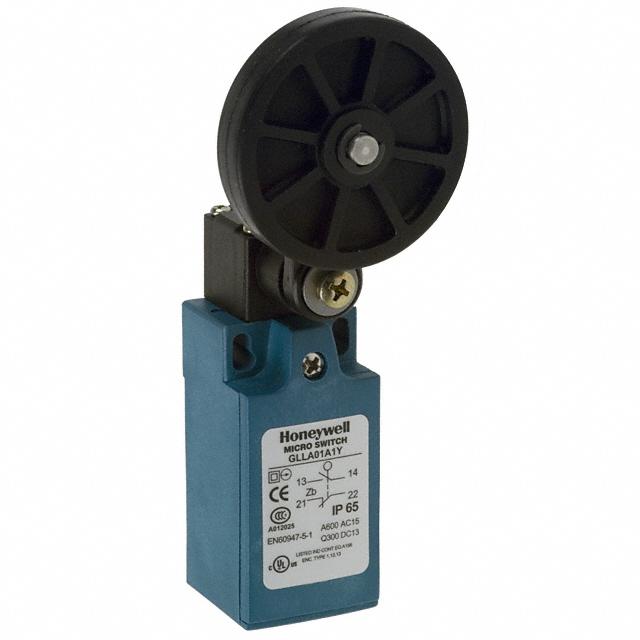

Switch Limit N.O./N.C. SPDT Side Rotary with Roller Conduit 6A 600VAC 250VDC 12N Rotary Screw Mount
s GLL series miniature limit switches feature double insulated housings which conform to EN50047 and are designed to IEC electrical standard.
得捷:
SWITCH SNAP ACTION SPDT 10A 300V
艾睿:
Switch Limit N.O./N.C. SPDT Side Rotary with Roller Conduit 6A 600VAC 250VDC 12N Rotary Screw Mount
Allied Electronics:
Limit Switch, Roller Plunger, 1/2 in NPT Conduit, 1NC/1NO Contact
Chip1Stop:
Switch Limit N.O./N.C. SPDT Side Rotary with Roller Conduit 6A 600VAC 250VDC 12N Rotary Screw Mount
Verical:
Switch Limit N.O./N.C. SPDT Side Rotary with Roller Conduit 6A 600VAC 250VDC 12N Rotary Screw Mount
MASTER:
Switch Limit N.O./N.C. SPDT Side Rotary with Roller Conduit 6A 600VAC 250VDC 12N Rotary Screw Mount
Electro Sonic:
Switch Limit N.O./N.C. SPDT Side Rotary with Roller Conduit 6A 600VAC 250VDC 12N Rotary Screw Mount
额定电压DC 250 V
接触器类型 Side Rotary
额定电压AC 300 V
额定电流 10A AC, 10A DC
触点类型 SPDT
针脚数 2
额定电流Max 6A @120VAC
工作温度Max 80 ℃
工作温度Min -10 ℃
额定电压 300 VAC
额定电压AC Max 600 V
安装方式 Chassis, Screw
高度 130 mm
材质 Plastic
工作温度 -10℃ ~ 80℃
外壳材质 Plastic
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
