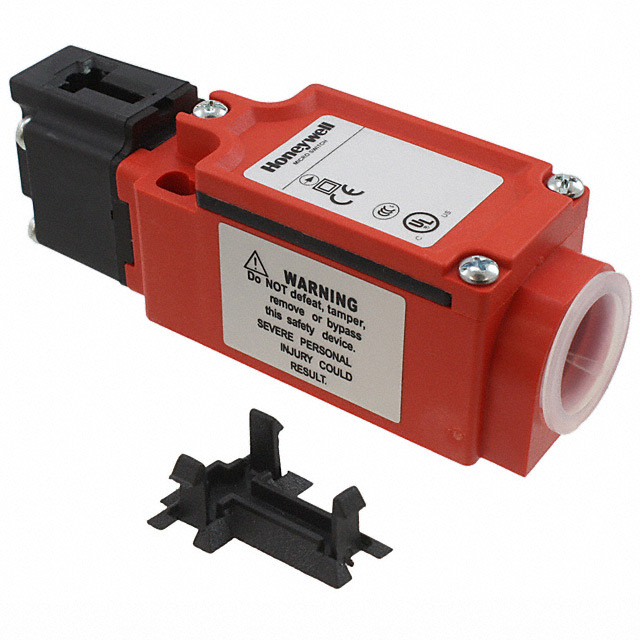

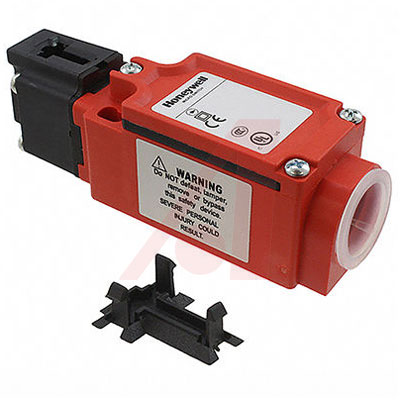

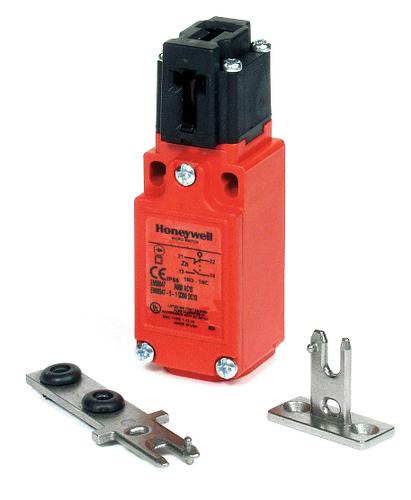

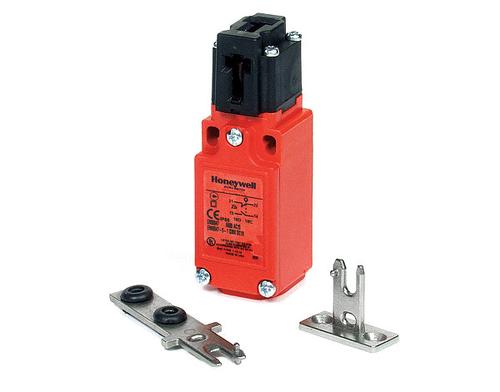

Switch Safety Interlock N.C. DPST Key 500VAC 250VDC Conduit 1000000Cycles Screw Mount
Safety Interlock Switch from is perfectly-sealed for continuous, safe operations. Compact in size, this safety key-operated Honeywell Switch delivers superior performance for safety hard guarding applications. This Interlock Safety Switch comes with a choice of two standard actuators to offer design flexibility.
These safety switches are generally used in woodworking and packaging machineries, metal converting, plastic molding, semiconductor manufacturing and printing equipments, among others. Safety Interlock Switches are designed for mounting on a door or a cover, so when the door or other part is opened, they open automatically. They prevent the gear shift lever from moving until the brake is applied.
Product Highlights
Small size
Choice of two standard actuators
Multiple contact configurations
Positive opening safety contacts
Rotating head allows actuator engagement from five orientations
Double insulation per IEC 60947-5-1
Global approvals cULus, CE, CCC, SIL 3 capable
RoHS complaint for added safety
接触器类型 Key
额定电压AC 500 V
额定电流 10 A
触点类型 DPST-NC
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 500 VAC
额定电压DC Max 250 V
额定电压AC Max 500 V
安装方式 Panel
触点材质 Silver
工作温度 -25℃ ~ 85℃
外壳材质 Plastic
产品生命周期 Not Recommended for New Designs
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
