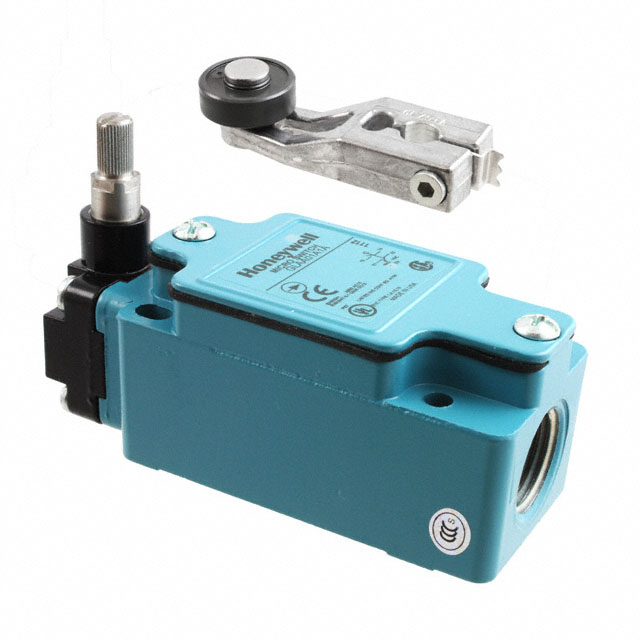

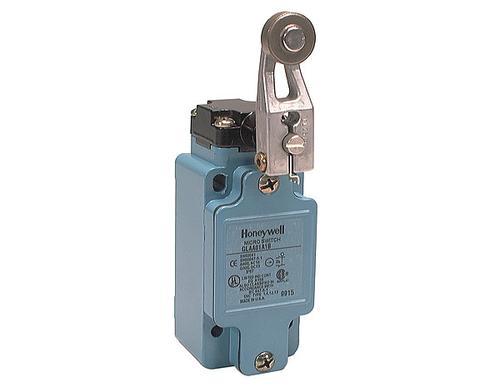

Switch Limit N.O./N.C. SPDT Side Rotary with Roller Conduit 6A 600VAC 250VDC 0.33N Rotary Screw Mount
The GL series of limit switches offer a platform of products built to meet IEC standards for world-wide acceptance.
得捷:
SWITCH SNAP ACTION SPDT 6A 120V
艾睿:
This global GLAA01A1A limit switch from Honeywell can activate different components within your circuitry based on electro-mechanical connections within the switch. GLAA01A1A is housed in zinc die cast. This device has a maximum current rating of 6 A @ 120VAC. It has a SPDT configuration. This limit switch has an operating temperature range of -25 °C to 85 °C. The GLAA01A1A limit switch has a conduit termination style. This product is 145.8 mm tall. The maximum AC voltage rating is 600 VAC and the maximum DC voltage rating is 250 VDC.
Allied Electronics:
SWITCH SIDE-ROTRY ROLL SPDT 120V
Chip1Stop:
Switch Limit N.O./N.C. SPDT Side Rotary with Roller Conduit 6A 600VAC 250VDC 0.33N Rotary Screw Mount
Verical:
Switch Limit N.O./N.C. SPDT Side Rotary with Roller Screw Mount 6A 600VAC 250VDC 0.33N Rotary Conduit Automotive
Newark:
# HONEYWELL GLAA01A1A Limit Switch, Side Rotary, SPDT-1NO, SPDT-NC, 10 A, 600 V, 0.33 N-m
MASTER:
MICRO SWITCH™ Global Limit Switches: GLA Series, EN50041 Mounting Standard, Epoxy-Coated Zinc Housing, Non Plug-In Body Style, Side Rotary, Fixed Length Roller Lever, Ø 19 mm x 6 mm [0.75 in x 0.24 in] Nylon Roller, 1NC 1NO Single Pole Double Throw SPDT
Electro Sonic:
MICRO SWITCH™ Global Limit Switches: GLA Series, EN50041 Mounting Standard, Epoxy-Coated Zinc Housing, Non Plug-In Body Style, Side Rotary, Fixed ...
额定电压DC 125 V
接触器类型 Side Rotary
额定电压AC 120 V
额定电流 6A AC, 550mA DC
触点类型 SPDT
针脚数 2
额定电流Max 6A @120VAC
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 600 VAC
额定电压AC Max 600 V
安装方式 Screw
高度 145.8 mm
工作温度 -25℃ ~ 85℃
外壳材质 Zinc Die-Cast
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509040
