Interlock Switch, 1NO/1NC, 6A 120VAC, Slow acting BBM, 90deg key, Zinc body/head

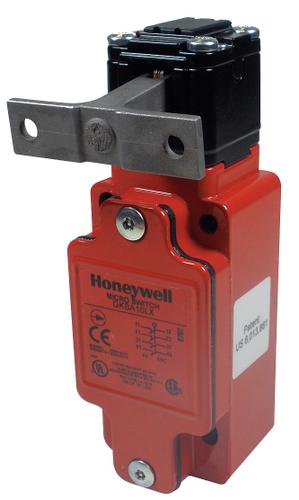

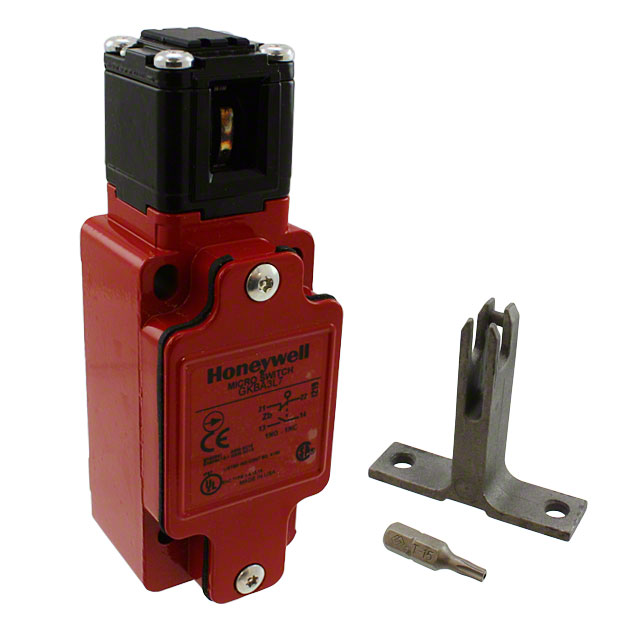

GK Series, Dual Entry Key Operated Safety Interlock Switch
The GK Series is designed specifically for use where key removal brings the machine to an immediate safe condition. It is well suited for large door applications, and its heavy duty construction withstands harsh industrial environments requiring rugged, long-term durability.
* Mechanical Life: Up to 15 Million Operations
* Side and Top Key Entry
* Contact Rating: 10 Amps Thermal; 600 VAC and 250 VDC Max.
* Utilization and Contact Rating Designation: AC15 A300/A600; DC13 Q300
* Operating Temperature: -25°C to +85°C
* Conduit Opening: 1/2" NPT
* Sealing: NEMA 4 and IP67
* Overall Dimensions H × W × D: 4.79" × 1.65" × 1.68"
* UL Listed, CSA Certified and CE Compliant
