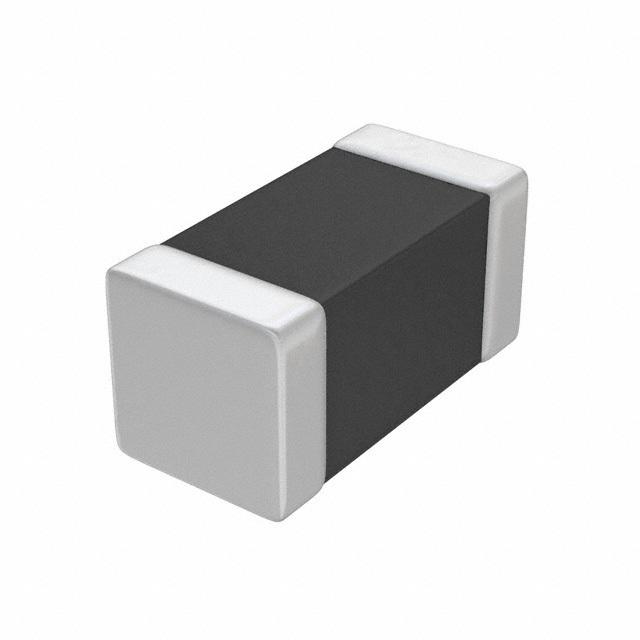

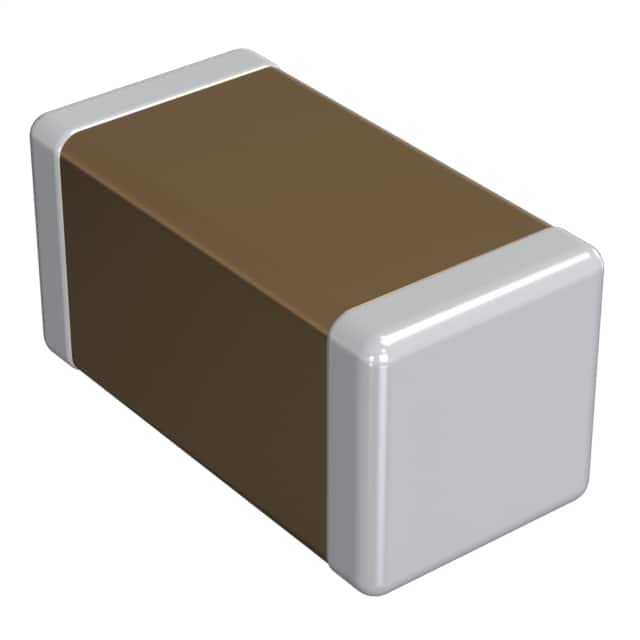

0603 27pF ±5% 250V C0G
27 pF ±5% 250V 陶瓷器 C0G,NP0 0603(1608 公制)
立创商城:
27pF ±5% 250V
得捷:
CAP CER 27PF 250V C0G/NP0 0603
艾睿:
This GQM1875C2E270JB12D multilayer ceramic capacitor from Murata has so many uses that it even has a standard classification system for all its uses! It can withstand a voltage of 250 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 1.6 mm long, 0.7 mm tall and 0.8 mm deep. Its capacitance value is 27pF. It has a tolerance of 5%.
安富利:
Cap Ceramic 27pF 250V C0G 5% SMD 0603 125°C Paper T/R
Verical:
Cap Ceramic 27pF 250V C0G 5% Pad SMD 0603 125C T/R
额定电压DC 250 V
电容 27 pF
容差 ±5 %
电介质特性 C0G/NP0
产品系列 GQM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
安装方式 Surface Mount
封装公制 1608
封装 0603

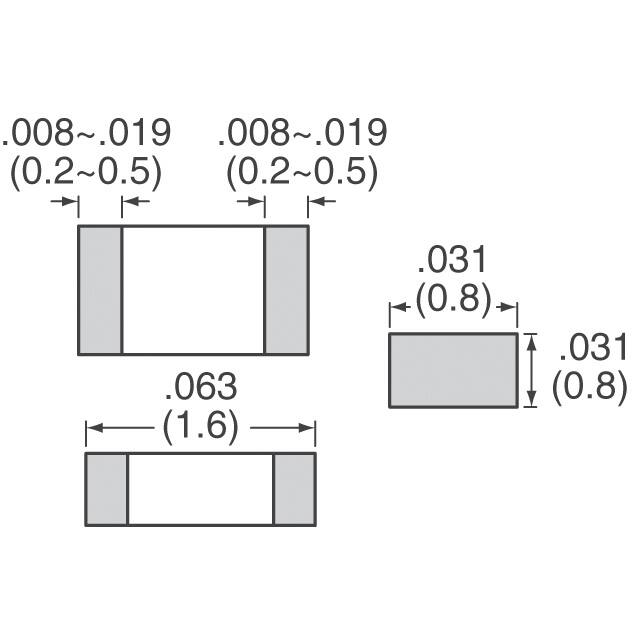

长度 1.60 mm
宽度 800 µm
高度 0.7 mm
封装公制 1608
封装 0603
厚度 0.7 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 RF,微波,高频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GQM1875C2E270JB12D muRata 村田 | 当前型号 | 当前型号 |
GQM1875C2E270GB12D 村田 | 类似代替 | GQM1875C2E270JB12D和GQM1875C2E270GB12D的区别 |
ERB1885C2E270JDX5D 村田 | 类似代替 | GQM1875C2E270JB12D和ERB1885C2E270JDX5D的区别 |
