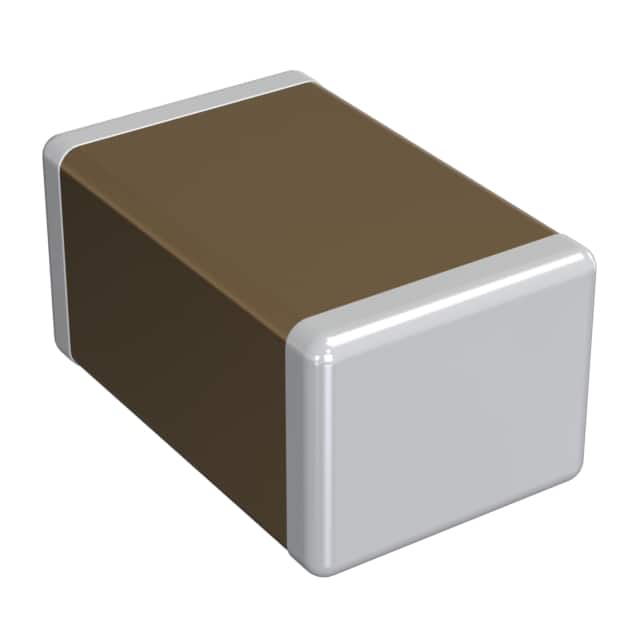

0805 1.5pF ±0.1pF 250V C0G
1.5 pF ±0.1pF 250V 陶瓷器 C0G，NP0 0805（2012 公制）
立创商城:
1.5pF ±0.1pF 250V
得捷:
CAP CER 1.5PF 250V C0G/NP0 0805
艾睿:
Due to the use of different ceramic dielectric materials used in this GQM2195C2E1R5BB12D multilayer ceramic capacitor from Murata, you can choose the right capacitor based on capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 250 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 2 mm long, 0.85 mm tall and 1.25 mm deep. Its capacitance value is 1.5pF.
安富利:
Cap Ceramic 1.5pF 250V C0G 0.1pF SMD 0805 125°C Paper T/R
Chip1Stop:
Cap Ceramic 1.5pF 250V C0G 0.1pF SMD 0805 125℃ T/R
Verical:
Cap Ceramic 1.5pF 250V C0G 0.1pF Pad SMD 0805 125C T/R
额定电压DC 250 V
电容 1.5 pF
容差 ±0.1 pF
电介质特性 C0G/NP0
产品系列 GQM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2.00 mm
宽度 1.25 mm
高度 0.85 mm
封装公制 2012
封装 0805
厚度 0.85 mm
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 RF，微波，高频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
