GS12E05-P1I

GS12E05-P1I图片1
GS12E05-P1I图片2
GS12E05-P1I图片3
GS12E05-P1I图片4
GS12E05-P1I图片5
GS12E05-P1I图片6
GS12E05-P1I概述

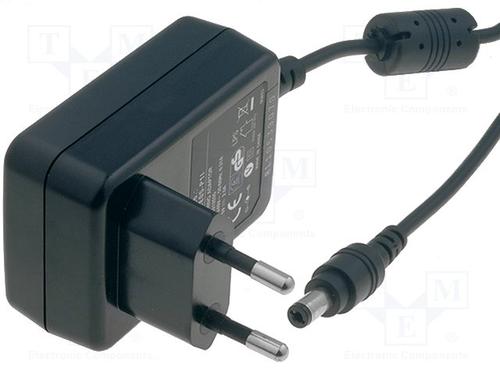

AC-DC Power Supply Single-OUT 5V 2A 10W

**2-Pin Euro Power Supply, ErP, Energy Saving, 5W to 36W**

The GSxxE series offers power adapters with low no load power consumption 0.3W, this plug in power supply also complies with energy saving regulations, such as ErP step 2 and EISA 2007. The Mean Well 2 pin Euro plug power supply is a class II power unit and comes in a fully enclosed plastic case. The GSxxE has TUV, CB and CE certificates, which guarantee the safety for different applications requiring low no load power consumption.

GS12E05-P1I中文资料参数规格
技术参数

额定功率 10 W

输出接口数 1

输出电压 5 VDC

输出电流 2 A

输出功率 10 W

额定电流Max 0.31 A

输出电流Max 2 A

输出功率Max 10 W

工作温度Max 50 ℃

工作温度Min 0 ℃

电源电压 90.264VAC, 135.370VDC

物理参数

工作温度 0℃ ~ 50℃

其他

包装方式 Carton

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买GS12E05-P1I
型号: GS12E05-P1I
制造商: Mean Well 台湾明纬
描述:AC-DC Power Supply Single-OUT 5V 2A 10W
