G120NF18 BK005概述

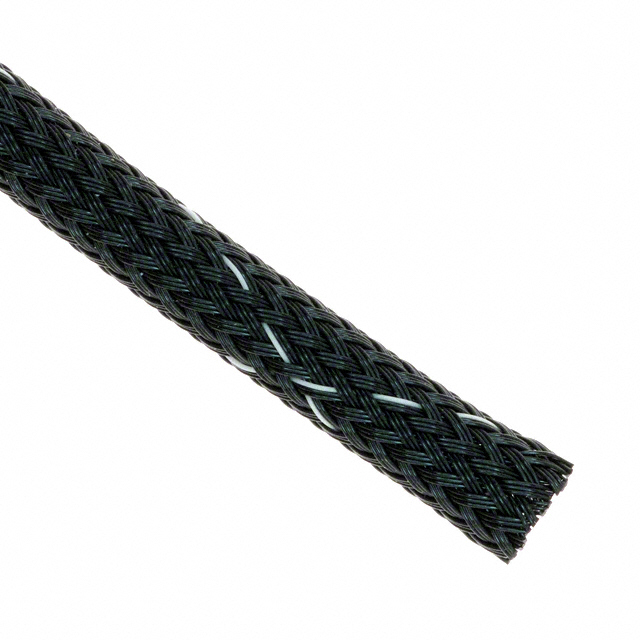

Sleeving, Braided PET, 1/8IN, 0.125IN Min., 0.25IN Max., Black, 100Ft

Lightweight, highly flexible, fungus-resistant sleeving that is not affected by most chemical environments and common solvents such as freon, detergents, soaps, bleaches and water.
.
* Specifications** ** Operating Temperature:** -70°C to 125°C. ** Nominal Wall Thickness:** 0.027". ** Color:** GRP-110NF — black, GRP-120NF — black with a white tracer. GRP-120NF passes UL VW-1 flame test.

Choose GRP NF For

* Non-Fraying Cuts without a Hot Knife

* Frequent Expansion at Scissor Cut Ends without Fraying

* Lightweight, Flexible Routing

* Use with Automatic Cutting Machines

* Use with XTRA

* GUARD™ Flexible CablesGRP NF Applications

* Protection of Wire, Cable and Hoses

* Wire Bundling and Harnessing

* Wire Splices

* Field Installation without Hot Knife

G120NF18 BK005中文资料参数规格
技术参数

易燃性等级 Flame Retardant

外形尺寸

长度 30.48 m

直径 6.35 mm

物理参数

颜色 Black

材质 Polyester

工作温度 -75℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买G120NF18 BK005
型号: G120NF18 BK005
制造商: Alpha Wire
描述:Sleeving, Braided PET, 1/8IN, 0.125IN Min., 0.25IN Max., Black, 100Ft
