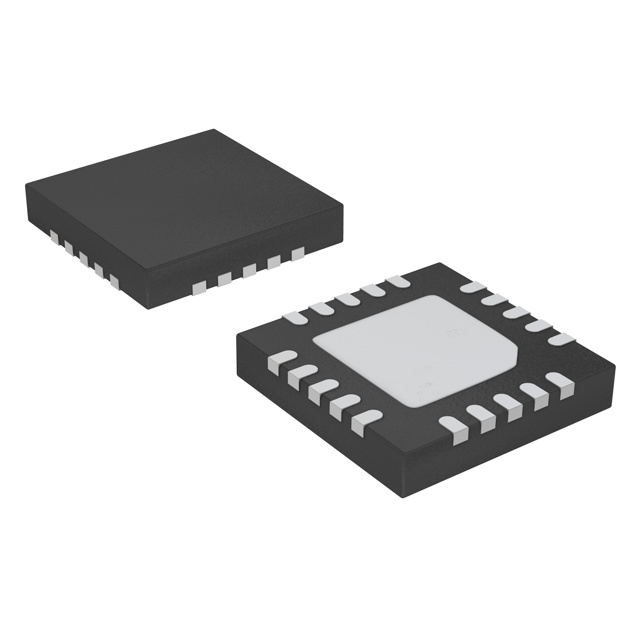

GTL2003BQ,118

IC TRANSLATOR 8Bit LV 20-DHVQFN

Overview

The Gunning Transceiver Logic - Transceiver Voltage Clamps GTL-TVC provide high-speed voltage translation with low ON-state resistance and minimal propagation delay. The GTL2003 provides eight NMOS pass transistors Sn and Dn with a common gate GREF and a reference transistor SREF and DREF. The device allows bidirectional voltage translations between 0.8 V and 5.0 V without use of a direction pin. Voltage translation below 0.8 V can be achieved when properly biased. For more information, refer to application note AN11127.

When the Sn or Dn port is LOW, the clamp is in the ON-state and a low resistance connection exists between the Sn and Dn ports. Assuming the higher voltage is on the Dn port, when the Dn port is HIGH, the voltage on the Sn port is limited to the voltage set by the reference transistor SREF. When the Sn port is HIGH, the Dn port is pulled to VDD1 by the pull-up resistors. This functionality allows a seamless translation between higher and lower voltages selected by the user, without the need for directional control.

All transistors have the same electrical characteristics and there is minimal deviation from one output to another in voltage or propagation delay. This is a benefit over discrete transistor voltage translation solutions, since the fabrication of the transistors is symmetrical. Because all transistors in the device are identical, SREF and DREF can be located on any of the other eight matched Sn/Dn transistors, allowing for easier board layout. The translator"s transistors provide excellent ESD protection to lower voltage devices and at the same time protect less ESD-resistant devices.

MoreLess

## Features

* 8-bit bidirectional low voltage translator

* Allows voltage level translation between 0.8 V, 0.9 V, 1.0 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V buses which allows direct interface with GTL, GTL+, LVTTL/TTL and 5 V CMOS levels

* Provides bidirectional voltage translation with no direction pin

* Low 6.5 Ω ON-state resistance Ron between input and output pins Sn/Dn

* Supports hot insertion

* No power supply required: will not latch up

* 5 V tolerant inputs

* Low standby current

* Flow-through pinout for ease of printed-circuit board trace routing

* ESD protection exceeds 2000 V HBM per JESD22-A114, and 1000 V CDM per JESD22-C101

* Packages offered: TSSOP20, DHVQFN20

## Target Applications

* Any application that requires bidirectional or unidirectional voltage level translation from any voltage from 0.8 V to 5.0 V to any voltage from 0.8 V to 5.0 V

* The open-drain construction with no direction pin is ideal for bidirectional low voltage for example, 0.8 V, 0.9 V, 1.0 V, 1.2 V, 1.5 V, or 1.8 V processor I²C-bus port translation to the normal 3.3 V and/or 5.0 V I²C-bus signal levels or GTL/GTL+ translation to LVTTL/TTL signal levels.
