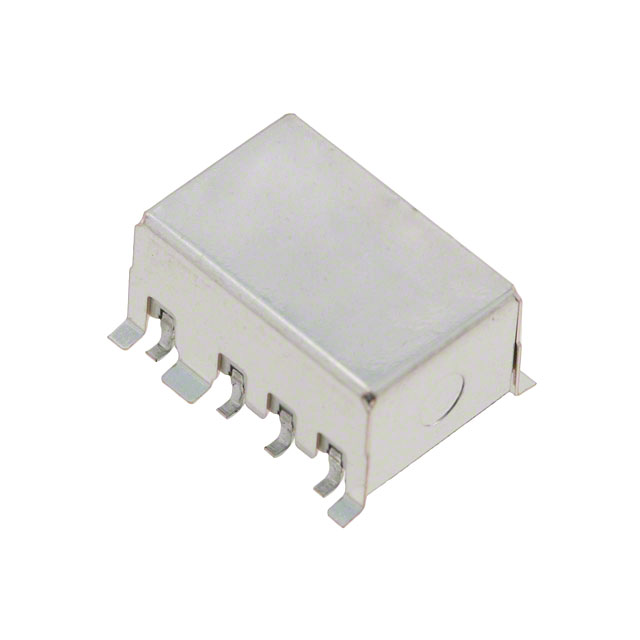

OMRON ELECTRONIC COMPONENTS G6K-2F-RF-T DC5 继电器, 高频, DPDT, 5VDC, SMD
The is a Miniature High-frequency Relay with DC coil. This G6K-2F-series surface mount relay has 2CO DPDT Ag contact. Superior high-frequency characteristics at 1GHz, such as an isolation of 20dB minimum between contacts of the same polarity or 30dB minimum between contacts of different polarity with an insertion loss of 0.2dB maximum.
得捷:
RELAY RF DPDT 1A 5V
立创商城:
终端继电器
艾睿:
Signal Relay 5VDC 1A DPDT10.7x8.6x5.4mm SMD
Chip1Stop:
Electromechanical Relay 5VDC 237Ohm 1A DPDT 10.7x8.6x5.4mm SMD High Frequency Relay
Verical:
Signal Relay 5VDC 1A DPDT10.7x8.6x5.4mm SMD
Newark:
Power Relay, DPDT, 5 VDC, 1 A, G6K-RF Series, SMD, Non Latching
频率 3 GHz
额定电压DC 60 V
额定电压AC 125 V
触点类型 DPDT
触点额定电流 1 A
线圈电压 5 VDC
线圈电流 21.1 mA
线圈电阻 237 Ω
线圈电压DC 5 V
额定功率Max 30W, 37.5VA
开关电流Max 1 A
工作温度Max 70 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 8
封装 -
长度 10.7 mm
宽度 8.6 mm
高度 5.4 mm
封装 -
触点材质 Silver
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
G6K-2F-RF-T DC5 Omron 欧姆龙 | 当前型号 | 当前型号 |
G6K-2F-RF-T-TR03 DC5 欧姆龙 | 完全替代 | G6K-2F-RF-T DC5和G6K-2F-RF-T-TR03 DC5的区别 |
G6K-2F-RF-T-TR09 DC5 欧姆龙 | 完全替代 | G6K-2F-RF-T DC5和G6K-2F-RF-T-TR09 DC5的区别 |
G6K-2F-RF-T DC12 欧姆龙 | 类似代替 | G6K-2F-RF-T DC5和G6K-2F-RF-T DC12的区别 |
