G6D-1A-ASI 5DC

OMRON ELECTRONIC COMPONENTS  G6D-1A-ASI 5DC  通用继电器, G6D-ASI系列, 功率, 无锁定, SPST常开, 5 VDC, 5 A

The G6D-ASI series from are through hole power PCB relays. These are single pole, standard, fully sealed, slim socket mountable PCB relay with D150 pilot duty ideal for output controls and small appliances.

.

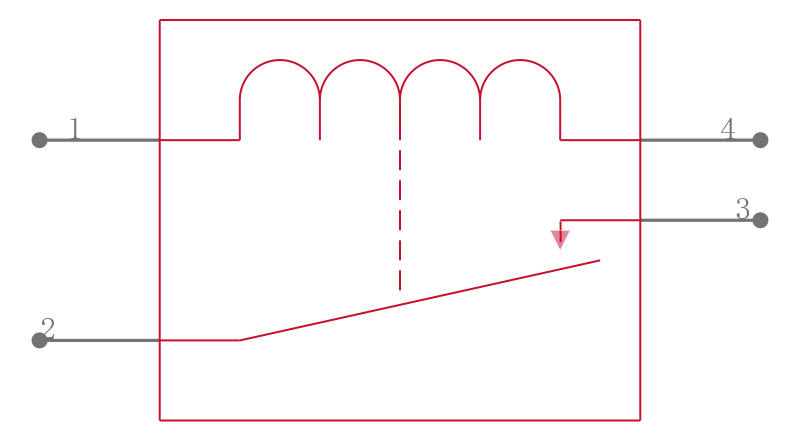

SPST-NO contact configuration

.

Selectable DC coil voltage of 5VDC, 12VDC and 24VDC

.

Maximum switching capacity of 5A at 250VAC, 30VDC

.

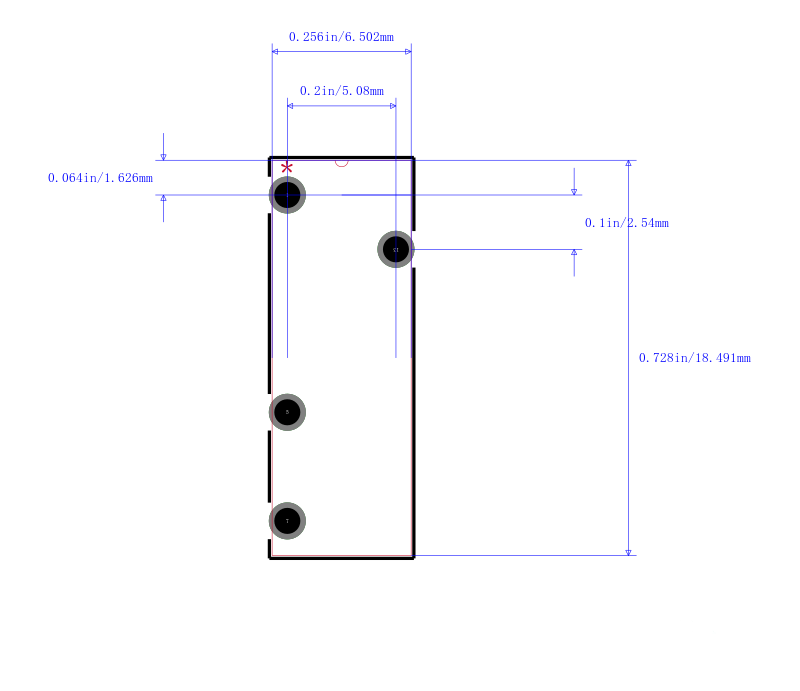

Slim package measures 6.5mm x 17.5mm x 12.5mm size

.

Sealed construction allows automatic soldering and cleaning

.

Long service life up to 300,000 operations with 2 A, 250VAC/30VDC load

.

Compliance to UL and CSA standards

.

Non latching relay

.

6kV impulse withstand voltage
