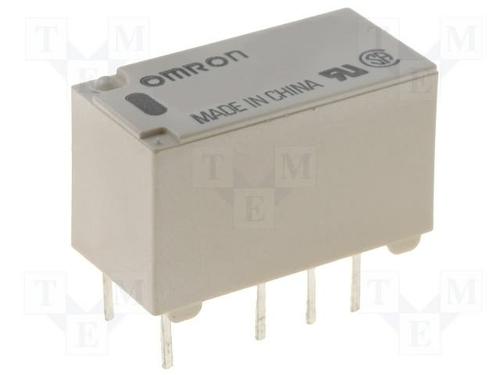

G6S-2 24VDC

OMRON ELECTRONIC COMPONENTS  G6S-2 24VDC  信号继电器, G6S系列, DPDT, 24 VDC, 2 A, 通孔安装, 非闭锁

The is a 2-pole Surface-mount Relay with DC coil, G6S series. DPST 2CO contact configuration, PCB terminals. Long terminals for ideal for soldering and mounting reliability. Unique terminal structure, designed to withstand IRS soldering processes. High dielectric strength 2000VAC and impulse withstand voltage between coil and contacts 2500V, 2 x 10µs: Telcordia requirements. Ultra-miniature at 9.4 H x 7.5 W x 15mm L.

.

Single-side stable relay

.

Fully sealed enclosure

.

High dielectric strength of 2,000VAC and impulse withstand voltage between coil and contacts

.

High sensitivity with 140mW rated power consumption

.

Applicable to IRS using heat resistant material

.

Standard model conforms to UL/CSA standards

.

Space saving inside L terminal

.

BSI EN60950 certified models available -Y type

.

Selectable DC coil voltage of 3VDC, 4.5VDC, 5VDC, 12VDC, 24VDC

.

Maximum switching capacity is 2A at 250VAC, 220VDC
