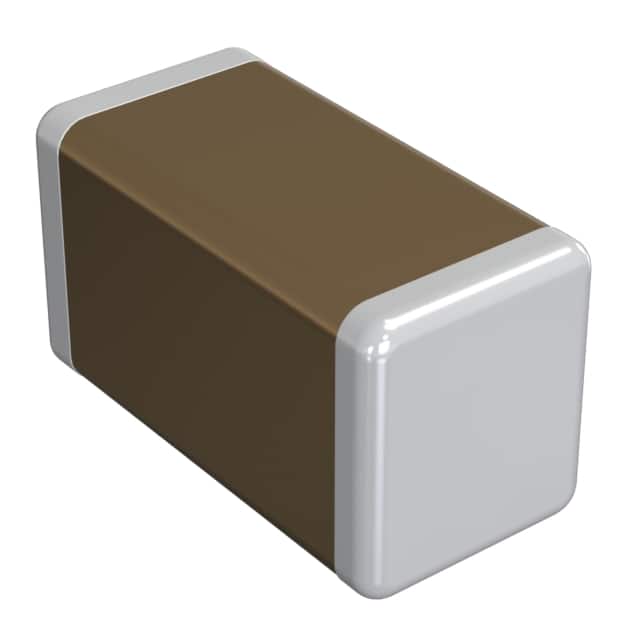

MURATA GRT31CR60J106KE01L 多层陶瓷电容器, 表面贴装, 1206 [3216 公制], 10 µF, 6.3 V, ± 10%, X5R, GRT Series 新
The from Murata is a GRT series AEC-Q200 automotive-grade monolithic ceramic capacitor. This capacitor meets the AEC-Q200 reliability test standard requirements established by the Automotive Electronics Council. GRT series MLCC capacitors are classified into temperature compensating and high dielectric constant types depending on the change in electrostatic capacitance due to change in temperature. The temperature compensating capacitors feature a small rate of change in electrostatic capacitance as the temperature changes and are used for applications such as filters and high frequency circuit matching. The high dielectric constant capacitors use materials with a high dielectric constant and feature a large electrostatic capacitance. It is designed for use in car multimedia, car interior, car comfort application and general electronic equipment. It is not appropriate for use in applications critical to passenger safety and car driving function ABS, AIRBAG etc.
额定电压DC 6.30 V
电容 10 µF
容差 ±10 %
电介质特性 X5R
产品系列 GRT
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.6 mm
封装公制 3216
封装 1206
厚度 1.6 mm
材质 X5R/-55℃~+85℃
工作温度 -55℃ ~ 85℃
产品生命周期 Not For New Designs
包装方式 Cut Tape CT
最小包装 2000
制造应用 Consumer Electronics, Power Management, Industrial, 汽车级, Portable Devices, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
