多层陶瓷电容器MLCC - SMD/SMT FACTORY NOT ACCEPTING ORDERS. SUGGESTED REPLACEMENT 81-GCM1555C1H100FA6D.
0.033µF ±5% 25V Ceramic Capacitor X7R 0603 1608 Metric
得捷:
CAP CER 0.033UF 25V X7R 0603
贸泽:
多层陶瓷电容器MLCC - SMD/SMT FACTORY NOT ACCEPTING ORDERS. SUGGESTED REPLACEMENT 81-GCM1555C1H100FA6D.
艾睿:

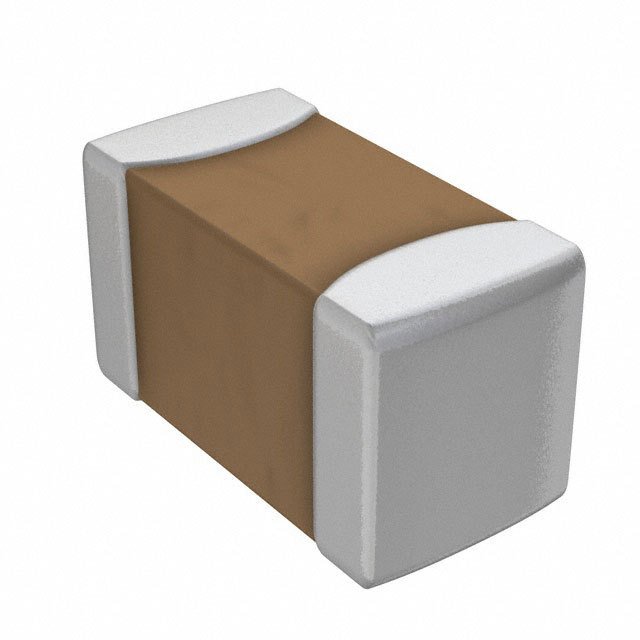

Do you need a capacitor with high stability and low losses? Then this GRM188R71E333JA01D multilayer ceramic capacitor from Murata is the solution you are looking for! It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 5%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep. Its capacitance value is 0.033uF.
Verical:
Cap Ceramic 0.033uF 25V X7R 5% Pad SMD 0603 125C T/R
额定电压DC 25.0 V
电容 33000 PF
容差 ±5 %
电介质特性 X7R
产品系列 GRM
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
厚度 800 µm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GRM188R71E333JA01D muRata 村田 | 当前型号 | 当前型号 |
GRM188R71E333JA01J 村田 | 类似代替 | GRM188R71E333JA01D和GRM188R71E333JA01J的区别 |
