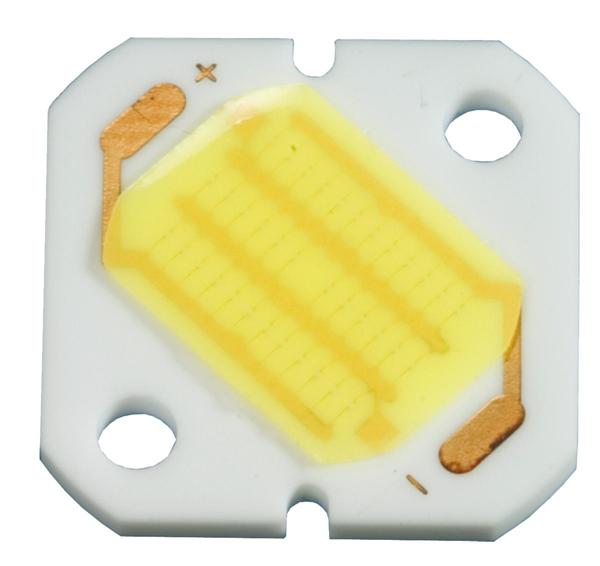

GW5BQC30K03图片1
GW5BQC30K03图片2
GW5BQC30K03图片3
GW5BQC30K03图片4
GW5BQC30K03概述

SHARP GW5BQC30K03 High Brightness LED, MINI ZENIGATA Series, Warm White, 300 lm, 3025K, 440mA

The MINI ZENIGATA series Module/Chip on Board can be used for indoor and outdoor lighting in applications such as hospitality restaurants and hotels, retail and more. It can experience the energy-saving benefits of LEDs combined with "s true-to-life colour rendering in mid-sized product applications. Refreshed line of Mini Zenigata COB LEDs offers updated specifications in a variety of performance areas. 15W module features a circular Light Emitting Surface LES of 8mm to simplify lens and reflector design. All LEDs in the Mini Zenigata family provide uniform package size of 15 x 12 x 1.6mm. The Mini Zenigata product family gives a new meaning to "compact," with approximately 1/3 38% the surface area of Mega Zenigata models and a significant reduction in the emissive area.

GW5BQC30K03中文资料参数规格
技术参数

耗散功率 4800 mW

测试电流 400 mA

正向电流Max 440 mA

工作温度Max 90 ℃

工作温度Min -30 ℃

耗散功率Max 4800 mW

封装参数

引脚数 2

封装 Module

外形尺寸

封装 Module

物理参数

颜色 White

工作温度 -30℃ ~ 90℃

其他

产品生命周期 End of Life

包装方式 Each

制造应用 LED Lighting, Portable Devices, Signalling

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买GW5BQC30K03
型号: GW5BQC30K03
制造商: Sharp 夏普
描述:SHARP GW5BQC30K03 High Brightness LED, MINI ZENIGATA Series, Warm White, 300 lm, 3025K, 440mA
