GSC 系列 20 W 单输出 24 V 商业 AC/DC 全球 高性能 开关

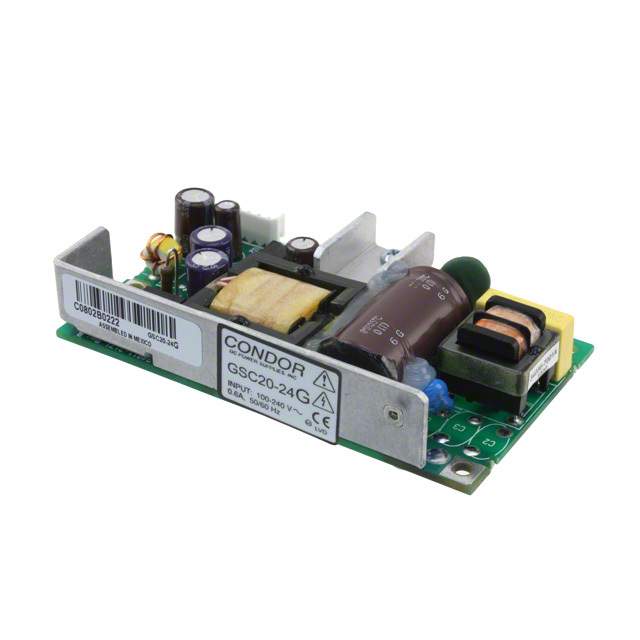

**Switch Mode, Single Output, Commercial Power Supply, GSC20 Series**
The Electronics GSC20 family is a series of single output, industrial open-frame AC/DC power supplies. These switch mode power supplies come in a very small size of 2 x 3.5 x 0.71 inches, the GSC20 provides 20W continuous, or 24W peak for a maximum duration of 60 seconds, with up to 70% efficiency. The GSC20 power supplies operate at universal input range of 90 to 264Vac. The power supplies are fully protected against short circuit and output overload. The GSC20 series of switching power supplies are ideal for commercial applications.
额定功率 20 W
输出接口数 1
输出电压 24 V
输出电流 0.85 A
输出功率 20 W
输出电流Max 850 mA
输出功率Max 20 W
额定功率Max 20 W
输入电压 90VAC ~ 264VAC
安装方式 Chassis
引脚数 8
长度 3.5 in
宽度 2 in
高度 0.71 in
重量 113 g
工作温度 0℃ ~ 50℃
产品生命周期 Not Recommended
包装方式 Box
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GSC20-24G SL Power 晟朗电子电力 | 当前型号 | 当前型号 |
GSC20-24 晟朗电子电力 | 类似代替 | GSC20-24G和GSC20-24的区别 |
