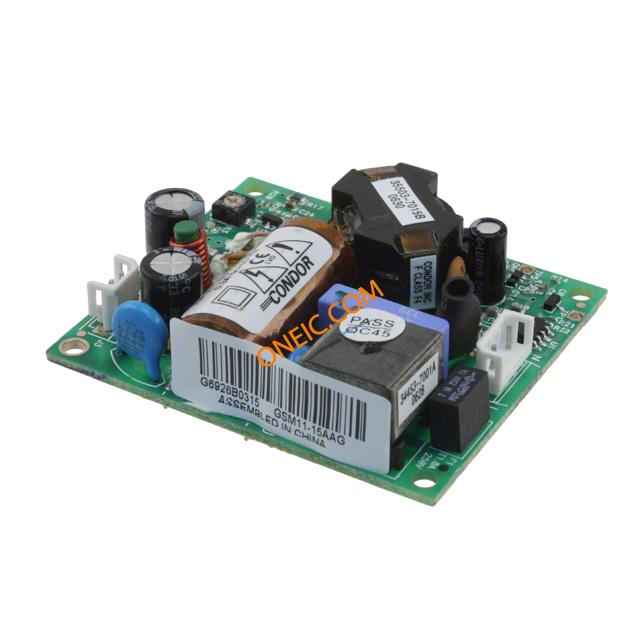

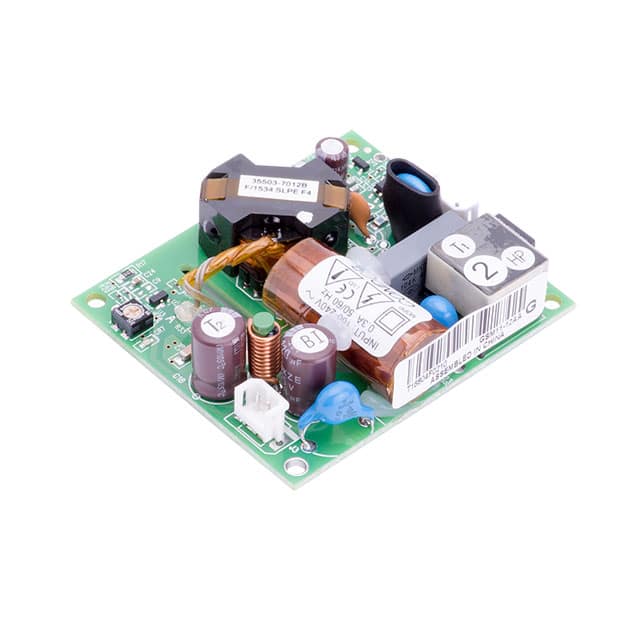

GSM11-15AAG

SL POWER CONDOR 嵌入式开关模式电源（SMPS）

Condor GSM11 Series family of single output power supplies are designed specifically for use in medical applications. Called the GSM11 series, the units are housed in an industry standard 2.28 × 2.0 × 0.7" package and, at 11 W, they offer 57% more power than previous models of this size. They will also deliver 15 W 114% more for one minute. Models can operate from a wide 85 to 264 VAC input range producing a full 11 W at 0 to 50°C with convection cooling. Higher operating temperatures up to 70°C are possible if normal derating rules are applied.

Available outputs are 3.3, 5, 12, 15 and 24 V as standard but Condor can supply any voltage between 5 and 24 V as required.

All models feature overvoltage and short circuit protection as standard.

GSM11 series supplies are fully approved to UL/EN/IEC60601-1, CSA22.2 No 601 and UL/EN/IEC/CSA60950-1. They also meet the requirements of EN55011 level B conducted and level A radiated.

Medical applications for which these new supplies are ideally suited include small single board computers SBCs, battery charging and powering small motors, pumps and solenoids.

**Features:**

* 11 Watt Medical AC/DC Universal Input Power Supply

* 85 - 264 VAC Input Range 100 - 240 VAC Nominal

* Overvoltage and Short Circuit Protection

* Approved to UL, CSA, and EN Standards

* Class II Input
