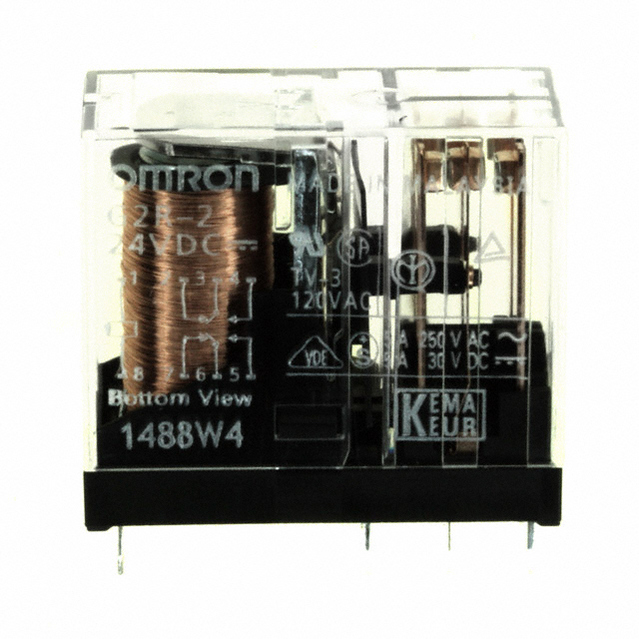

OMRON ELECTRONIC COMPONENTS G2R-2-DC24 继电器, PCB安装, DPDT, 5A, 24V
• Creepage distance of 8.0 mm min. between coil and contact.
• Dual-winding latching type available.
• Plug-in and quick-connect terminals available see G2R-SS data sheet.
• High sensitivity 360 mW and high capacity 16 A types available.
• Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock.
• Safety-oriented design assuring high surge resistance: 10,000 V min. between coil and contacts.
• UL recognized / CSA certified. RoHS Complaint
额定电压DC 125 V
额定电压AC 380 V
额定电流 5 A
触点类型 DPDT
功耗 530 mW
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 21.8 mA
线圈电阻 1.1 kΩ
载流 5.00 A
额定电流Max 5 A
线圈电压DC 24 V
额定功率Max 300W, 2.5KVA
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压 380 VAC
安装方式 Through Hole
引脚数 8
封装 Through Hole
长度 29 mm
宽度 13 mm
高度 25.5 mm
封装 Through Hole
触点材质 Silver Alloy
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490075
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
G2R-2-DC24 Omron 欧姆龙 | 当前型号 | 当前型号 |
G2R-2 24DC 欧姆龙 | 完全替代 | G2R-2-DC24和G2R-2 24DC的区别 |
G2R-24-DC24 欧姆龙 | 类似代替 | G2R-2-DC24和G2R-24-DC24的区别 |
JW2SN-DC24V 松下 | 功能相似 | G2R-2-DC24和JW2SN-DC24V的区别 |
