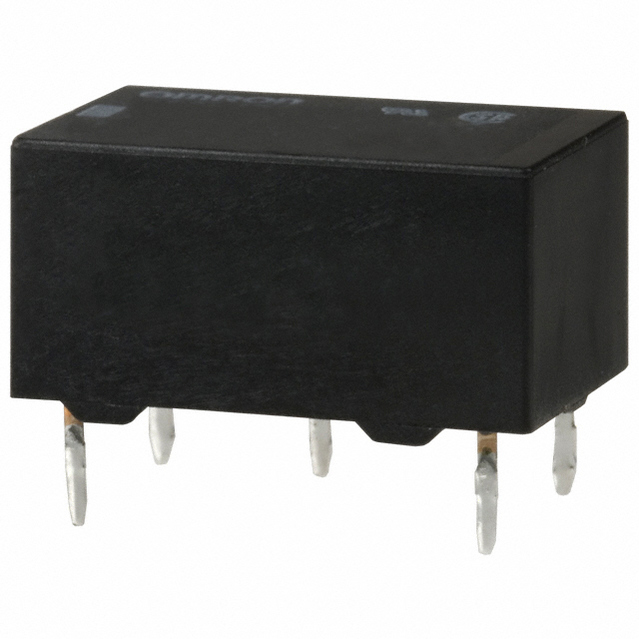

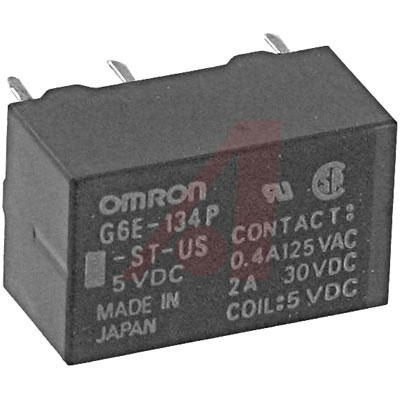

Electromechanical Relay 5VDC 125Ω 3A SPDT 16x9.91x8.38mm THT Signal Relay
3 A , 250 VAC, 220 VDC Voltage Rating, Low Signal Relay
Fully sealed relay with high-surge dielectric for use in telecommunication equipment. High sensitivity. Low-profile design for use in 1/2" PC board rack. Surge withstand voltage of 1500 V meets FCC Part 68 requirements. Unique moving loop permanent magnet armature reduces relay size, magnetic interference, and contact bounce time. DPDT or 4PDT bifurcated crossbar contacts Au clad. Rated 3 amps carry current.
12 VDC coil voltage. 1500 VAC @ 50/60 Hz 1 Minute dielectric rating. 1 Form C contact form. Ag with Au Clad contact material.
额定电压DC 220 V
额定电压AC 250 V
额定电流 2 A
绝缘电阻 1000 MΩ
触点类型 SPDT
功耗 200 mW
触点额定电流 3 A
线圈电压 5 VDC
线圈电流 40 mA
线圈电阻 125 Ω
载流 3.00 A
额定电流Max 3 A
线圈电压DC 5 V
额定功率Max 60W, 50VA
开关电流Max 3 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压 125 VAC
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚数 5
封装 125
长度 16 mm
宽度 8.38 mm
高度 8.38 mm
封装 125
触点材质 Silver, Gold Clad
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
G6E-134P-ST-US-DC5 Omron 欧姆龙 | 当前型号 | 当前型号 |
G2E-184P-H-M-US-DC5 欧姆龙 | 功能相似 | G6E-134P-ST-US-DC5和G2E-184P-H-M-US-DC5的区别 |
