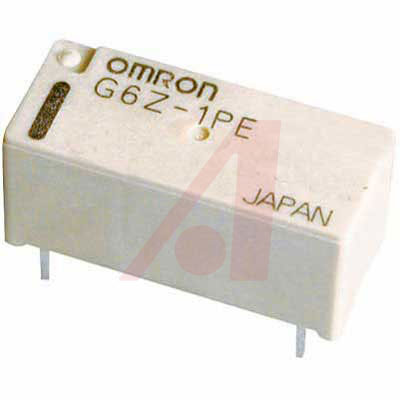

G6Z-1P-DC24

Electromechanical Relay 24VDC 2.88KΩ 0.5A SPDT 20mm 8.6mm 8.9mm THT High Frequency Relay Automotive

SPDT Relay Type, 100 Milliohms Max. Contact Resistance, 0.18 mm Lead Dia., High-Frequency Relays

* Triplate micro stripline technology assures superior high-frequency characteristics

* Series includes versions with an E-shape terminal structure, and models with a Y-shape terminal structure, allowing greater freedom with PCB design

* Surface mount relays available in tube packaging or tape and reel packaging

* RoHS compliant

* Superior High-Frequency Characteristics 60-65 dB Isolation at 900 MHz, Insertion Loss of 0.5 dB Max., and V.SWR of 1.5 Max. at 2.6 GHz

* Triplate Micro Stripline Technology Assures Superior High-Frequency Characteristics

* Miniature Dimensions of 20 × 8.6 × 8.9 mm L × W × H

* Available Models Include Single-Coil Latching 200 mW, Dual Coil Latching 360 mW, and Models with

Reverse Contact Arrangement 200 mW

* Series Includes Versions with an E-Shape Terminal Structure, and Models with a Y-Shape Terminal Structure, Allowing Greater Freedom with PCB Design

* Models with 75Ω Impedance and 50Ω Impedance

* Surface Mount or PCB
