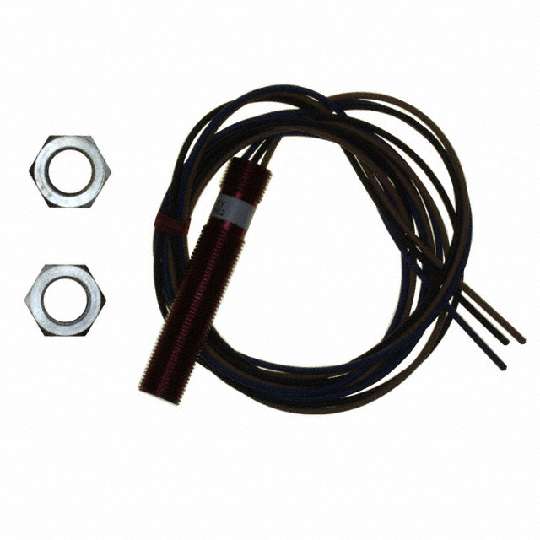

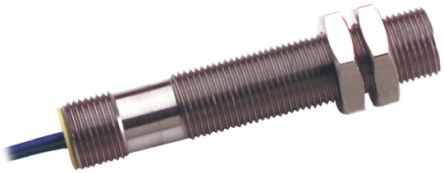

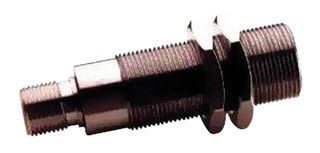

CHERRY GS100502 霍尔效应传感器, 齿轮齿, 24V
The is a Gear Tooth Speed Sensor, hall-effect device designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output. From near zero speed up to 15kHz sensing capability. Compatible with unregulated power supply. 10 bit dynamic threshold direction offers, automatically adjusting magnetic range and self-compensating to target geometry.
- .
- Sinusoidal vibration
- .
- Anodized aluminum housing
- .
- -40 to 125°C Operating temperature
- .
- IP67 Protection rating
频率 15 kHz
电源电压DC 4.50 V, 4.50 V min
输出电压 400 mV
输出电流 25.0 mA
供电电流 6.00 mA
输出电压Min 400 mV
输出电流Max 25 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5VDC ~ 24VDC
电源电压Max 24 VDC
安装方式 Panel
引脚数 4
封装 Barrel, Aluminum
长度 65 mm
宽度 40.9 mm
脚长度 1.00 m
封装 Barrel, Aluminum
工作温度 -40℃ ~ 105℃ TA
外壳材质 Aluminum
产品生命周期 Active
包装方式 Bulk
制造应用 Sensing & Instrumentation, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
