GH36S000001参数规格_中文资料_数据手册PDF

GH36S000001概述

Switch Slide ON ON SPDT Top Slide 20VAC 20VDC 0.4VA Solder Lug Panel Mount

得捷:
SWITCH SLIDE SPDT 0.4VA 20V

贸泽:
Slide Switches INSTRMNT GRADE SLIDE SW

Chip1Stop:
Switch Slide ON ON SPDT Top Slide 20VAC 20VDC 0.4VA Solder Lug Panel Mount

Verical:
Switch Slide ON ON SPDT Top Slide 20VAC 20VDC 0.4VA Solder Lug Panel Mount

MASTER:
Switch Slide ON ON SPDT Top Slide 20VAC 20VDC 0.4VA Solder Lug Panel Mount

Powell:
Instrument Grade Slide Switch

Online Components:
Switch Slide ON ON SPDT Top Slide 20VAC 20VDC 0.4VA Solder Lug Panel Mount

Electro Sonic:
Switch Slide ON ON SPDT Top Slide 20VAC 20VDC 0.4VA Solder Lug Panel Mount

GH36S000001中文资料参数规格

技术参数

额定电压DC 20 V

额定电压AC 20 V

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压DC Max 20 V

额定电压AC Max 20 V

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

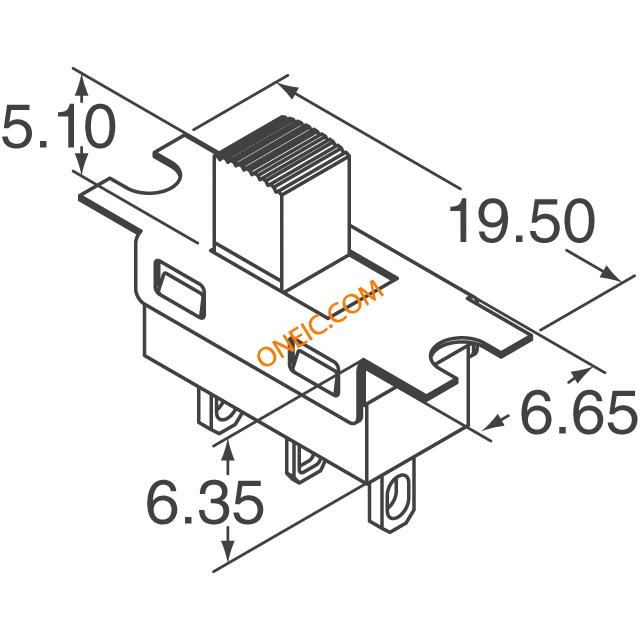

外形尺寸

长度 19.5 mm

宽度 6.65 mm

高度 15.65 mm

物理参数

触点材质 Brass

工作温度 -30℃ ~ 85℃

其他

产品生命周期 60000 Cycles

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买GH36S000001

型号： GH36S000001

制造商： Apem Components

描述：Switch Slide ON ON SPDT Top Slide 20VAC 20VDC 0.4VA Solder Lug Panel Mount
