GC120A12-R7B

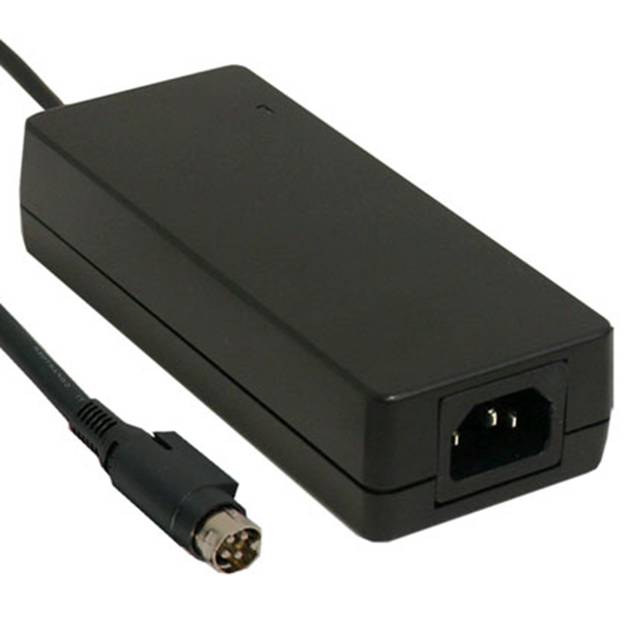

GC120A12-R7B图片1

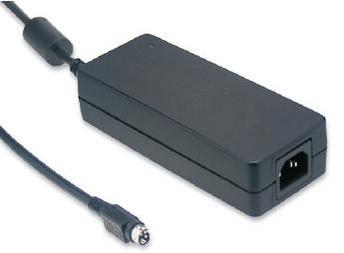

GC120A12-R7B图片2

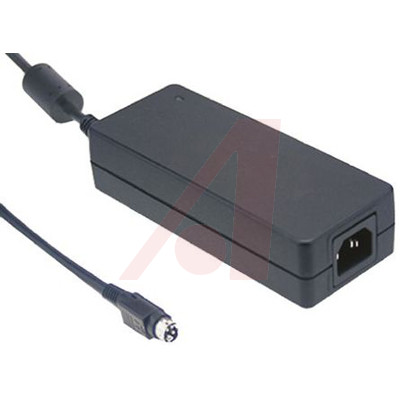

GC120A12-R7B图片3

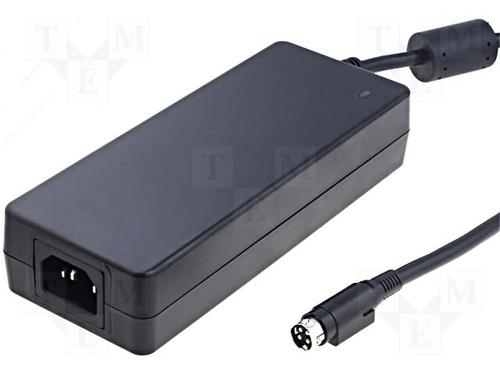

GC120A12-R7B图片4

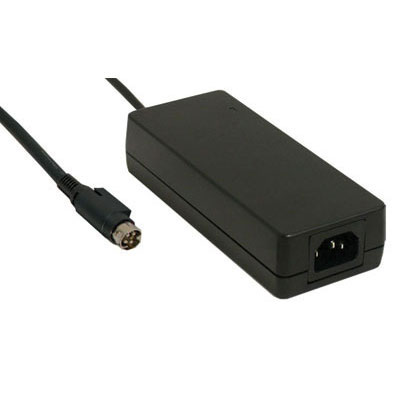

GC120A12-R7B图片5
GC120A12-R7B图片6
GC120A12-R7B图片7
GC120A12-R7B图片8
GC120A12-R7B图片9
GC120A12-R7B图片10
GC120A12-R7B图片11
GC120A12-R7B图片12
GC120A12-R7B概述

120W Single Output Battery Charger2 stage charging characteristic Universal AC input / Full range No load power consumption3 pole AC inlet IEC320-C14 Class I power with earth pin Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Fully enclosed plastic case 2 color LED indicator for charging status Approvals: TUV / UL / CB / FCC / CE 2 years warranty Built-in active PFC function, PF>0. ### 铅酸

台式 13.6V 7.5A 12V


欧时:
13.6V Portable 7.5 Amp Battery Charger


得捷:
BATT CHARGER DESKTOP 13.6V 7.5A


贸泽:
桌面式AC适配器 102W 13.6V 7.5A Din for 40-100Ah batt


艾睿:
Battery Chargers 1-OUT 13.6V 7.5A 102W


Allied Electronics:
Battery Charger; 120W Charging, 13.6V7.5A; 18AWGx4C/120cm, DIN 4PIN


Jameco:
Charger Switching Pfc Enclosed 120 Watt


安富利:
MWLGC120A12-R7B


TME:
Charger: for rechargeable batteries; acid-lead; 7.5A; 40÷100Ah


CDI:
AC/DC 102W 13.6V PFC Desktop


GC120A12-R7B中文资料参数规格
技术参数

输出接口数 1

输出电压 13.6 V

输出电流 7.5 A

输出功率 102 W

输出电流Max 7.5 A

输出功率Max 102 W

额定功率Max 102 W

工作温度Max 70 ℃

工作温度Min -30 ℃

输入电压 85VAC ~ 264VAC

封装参数

封装 120

外形尺寸

长度 6.57 mm

宽度 2.64 mm

高度 35 mm

封装 120

物理参数

重量 620 g

工作温度 -30℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8504409510

数据手册

在线购买GC120A12-R7B
型号: GC120A12-R7B
制造商: Mean Well 台湾明纬
描述:120W Single Output Battery Charger 2 stage charging characteristic Universal AC input / Full range No load power consumption3 pole AC inlet IEC320-C14 Class I power with earth pin Protections: Short circuit / Overload / Over voltage / Over temperature Cooling by free air convection Fully enclosed plastic case 2 color LED indicator for charging status Approvals: TUV / UL / CB / FCC / CE 2 years warranty Built-in active PFC function, PF>0. ### 铅酸
