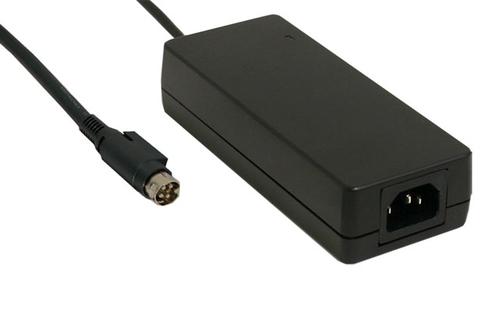

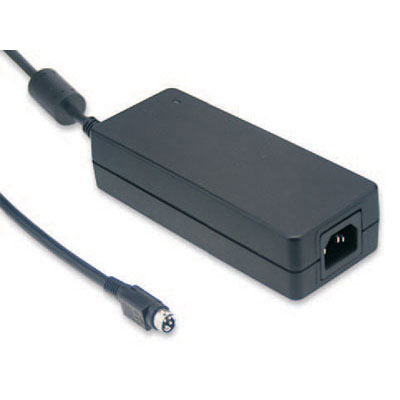

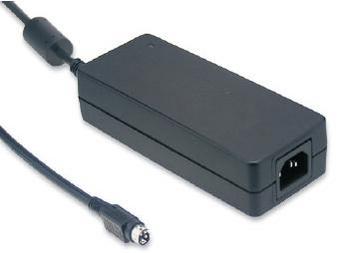

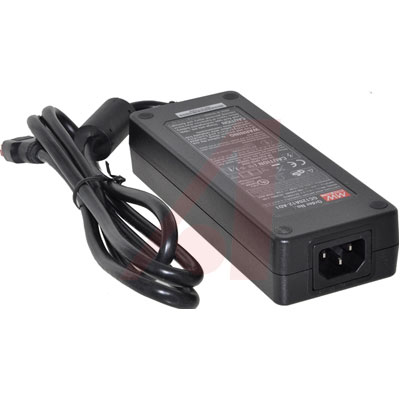

GC120A24-AD1

Battery Chargers 1Out 27.2V 4.42A 120.2W

**Features:

* **Portable Power Adapter with Charging Function

* Suitable for Batter Back Up System, Electrical Wheelchair, Trailer or General Consumer Electronics Products

* 3- Pole AC Inlet

* Anderson Output Connector

* Class I Power

* High Efficiency Up to 94%

* Protections: Short Circuit/Overload/Over Voltage/Over Temperature

* Fully Enclosed Plastic Case

* 2 Color LED Indicator for Charging Status

* 2-Year Warranty

**Additional Features:**

* Rated Output Power: 120.2 W

* Output Voltage: 27.2 VDC

* Output Current: 4.42 A

* Input Voltage Range: 85-264 VAC/120- 370 VDC

* Recommended Battery Capacity: 20-65 Ah

* Efficiency: 90%

* Overload: 90-110% Rated Output Power

* Overload Protection Type: Constant Current Limiting Recovers Automatically After Fault Condition is Removed

* Over Voltage: 105-135% Rated Output Voltage

* Over Voltage Protection Type: Shut Down O/P Voltage, Re-Power on to Recover

* Output Cable Length: 4 Ft..

* Mean Time Before Failure: 400.7K Hrs. Min.
