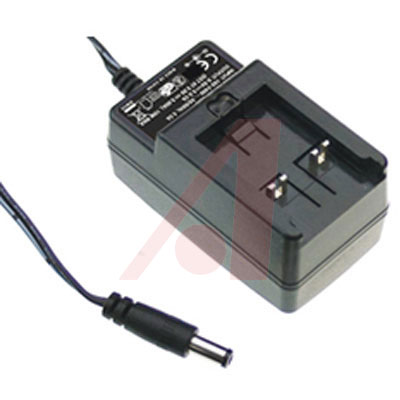

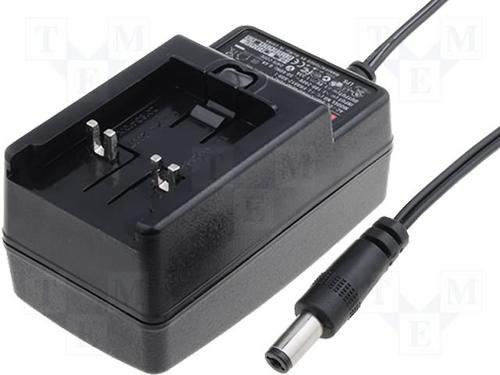

GE12 系列 12 W 单输出 9 V AC/DC 欧式 可互换 AC 插头
**Features:
* **Wall-Mounted Style Adapter with Safety Certificates
* Changeable DC Plug MOQ May Be Required
* ErP Step 2 Compliant
* Meets EISA 2007

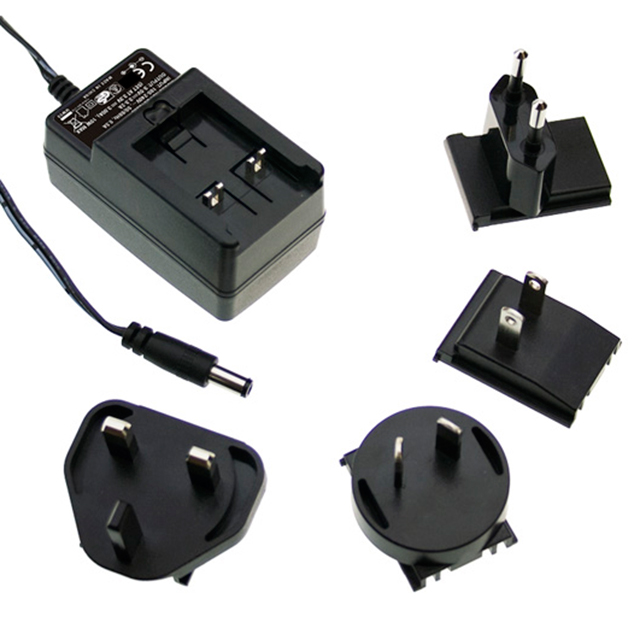

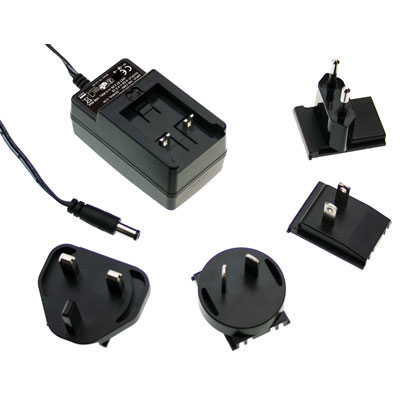

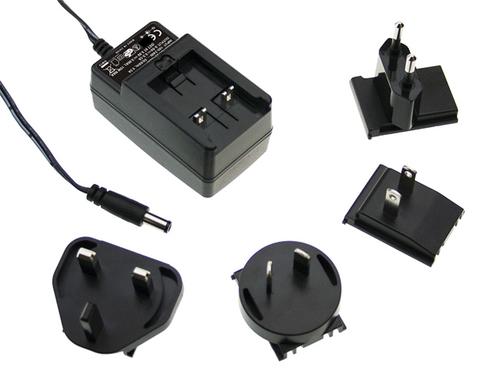

* Interchangeable AC Plugs Plug Kit Sold Separately
* Class II Power
* High Efficiency Up to 85%
* Protections: Short Circuit/Overload/Over Voltage
* LED Indicator for Power On
* 2-Year Warranty **Additional Features:**
* "Rated Output Power: 15 W
* Output Voltage: 48 VDC
* Output Current: 0.25 A
* Input Voltage Range: 90-264 VAC/135-370 VDC
* Efficiency: 83%
* Overload: 110-200% Rated Output Power
* Overload Protection Type: Hiccup Mode, Recovers Automatically After Fault Condition Is Removed
* Over Voltage: 115-135% Rated Output Voltage
* Over Voltage Protection Type: Clamp by Zener Diode
* Output Cable Length: 5 Ft.
* Mean Time Before Failure: 100K Hrs. Min.
额定功率 12 W
输出接口数 1
输出电压 9 V
输出电流 1.33 A
输出功率 12 W
额定电流Max 0.4 A
输出电流Max 1.33 A
输入电流Min 0.4 A
输出功率Max 12 W
工作温度Max 50 ℃
工作温度Min -10 ℃
电源电压 90.264VAC, 135.370VDC
输入电压 95VAC ~ 264VAC
安装方式 Plug In
长度 70.7 mm
宽度 42 mm
高度 38.8 mm
电源线长度 1.00 m
颜色 Black
工作温度 -10℃ ~ 50℃
产品生命周期 Active
包装方式 Carton
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409510
