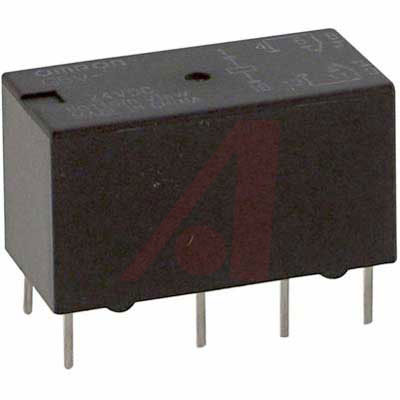

G5V2H1DC24

Signal Relay 24VDC 1A DPDT20.5x10.1x11.5mm THT

24 VDC Coil Voltage, 8.30 mA Coil Current, 2880 Ohms Coil Resistance, Low Signal Relay

** DPDT** . Bifurcated contacts. Designed for telecommunications, computer peripherals, security equipment; low level to 2 amps maximum. ** Standard:** G5V-2. ** High-Sensitivity:** G5V-2-H. ** Ultra-Sensitive:** G5V-2-H1. ** Contact Resistance: ** 100 mΩ. ** Specifications. Contact Resistance:** 50 mΩ; G5V-2-H1:** ** 100 mΩ ** Operate Time:** 7 mS max. ** Release Time:** 3 mS max. Fully sealed case allows automatic soldering and cleaning. UL and CSA approved. Meets FCC part 68 1500 V surge withstand. ** Pick-Up Voltage:** 75% max. ** Dropout Voltage:** 5% min.

The low signal relay is suitable for handling low signals in computer peripherals, telecommunication and security equipment.
