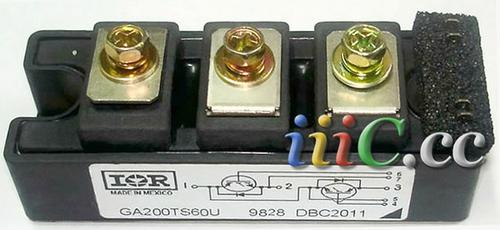

GA200TS60U

600V UltraFast 10-30kHz Half-Bridge IGBT in a INT-A-Pak package

HALF-BRIDGE IGBT INT-A-PAK

Ultra-Fast Speed IGBT

Features

• UltraFast: Optimized for high operating frequencies 8-40 kHz in hard switching, >200kHz in resonant mode

• Very low conduction and switching losses

• HEXFRED™antiparallel diodes with ultra-soft recovery

• Industry standard package

• UL approved

Benefits

• Increased operating efficiency

• Direct mounting to heatsink

• Performance optimized for power conversion: UPS, SMPS, Welding

• Lower EMI, requires less snubbing

• Generation 4 IGBT technology
