标准恢复整流器,2A 至 10A采用工业标准封装类型的多用途、高效标准恢复功率二极管。### 二极管和整流器,Vishay Semiconductor
标准恢复整流器,2A 至 10A
采用工业标准封装类型的多用途、高效标准恢复功率。
欧时:

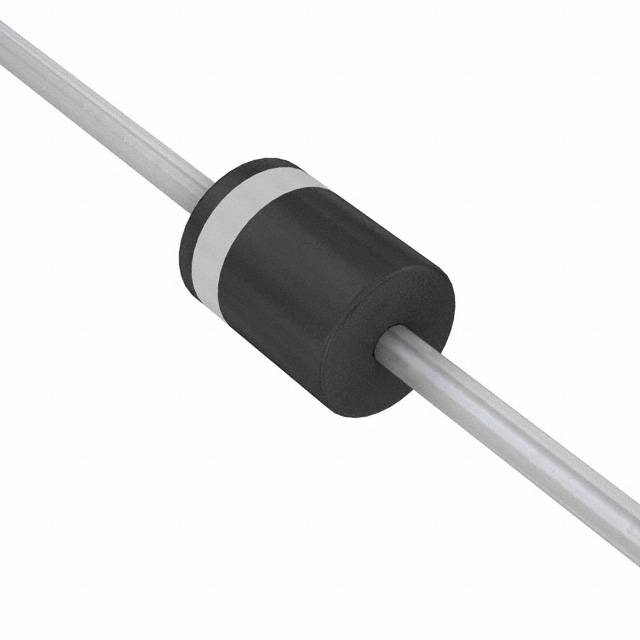

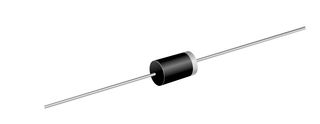

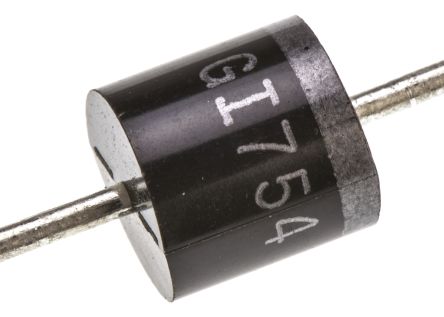

Vishay 二极管 GI754-E3/54 开关, Io=6A, Vrev=400V, 2.5μs, 2引脚 P600封装
e络盟:
标准恢复二极管, 400 V, 6 A, 单, 1.25 V, 2.5 µs, 400 A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode GI754-E3/54 rectifier from Vishay. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its peak non-repetitive surge current is 400 A, while its maximum continuous forward current is 22 A. It is made in a single configuration. This rectifier has a minimum operating temperature of -50 °C and a maximum of 150 °C.
安富利:
Diode Switching 400V 22A 2-Pin Case P600 T/R
Chip1Stop:
Diode Switching 400V 22A 2-Pin Case P600 T/R
Verical:
Rectifier Diode Switching 400V 22A 2500ns 2-Pin Case P-600 T/R
电容 150 pF
输出电流 ≤6.00 A
针脚数 2
正向电压 1.25 V
极性 Standard
热阻 20℃/W RθJA
反向恢复时间 2500 ns
最大反向电压(Vrrm) 400 V
正向电流 6 A
最大正向浪涌电流(Ifsm) 400 A
最大反向漏电流(Ir) 5 uA
正向电压Max 1.25 V
正向电流Max 22000 mA
工作温度Max 150 ℃
工作温度Min -50 ℃
安装方式 Through Hole
引脚数 2
封装 P-600
长度 9.1 mm
宽度 9.1 mm
高度 9.1 mm
封装 P-600
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 800
制造应用 电源管理, 工业
RoHS标准
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GI754-E3/54 VISHAY 威世 | 当前型号 | 当前型号 |
P600G-T3 Sensitron Semiconductor | 功能相似 | GI754-E3/54和P600G-T3的区别 |
P600G-GT3 Sensitron Semiconductor | 功能相似 | GI754-E3/54和P600G-GT3的区别 |
