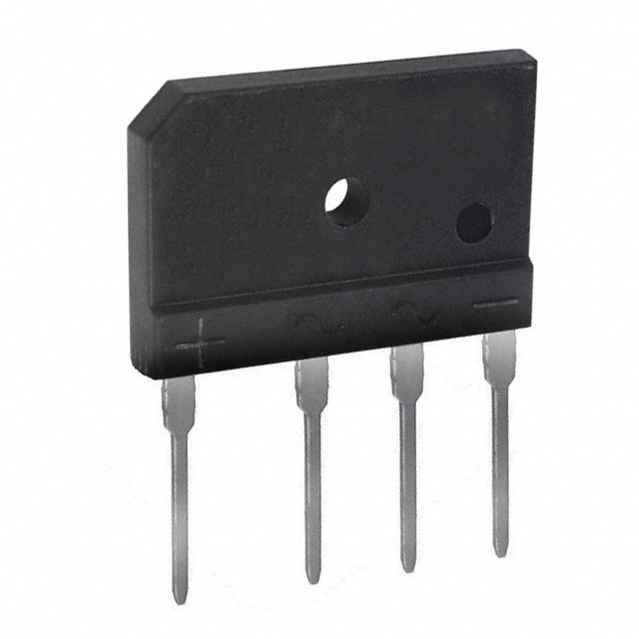

Diode Rectifier Bridge Single 50V 20A 4Pin4+Tab GBJ Tube
Features
Glass Passivated Die Construction
High Case Dielectric Strength of 1500VRMS
Low Reverse Leakage Current
Surge Overload Rating to 240A Peak
Ideal for Printed Circuit Board Applications
UL Listed Under Recognized Component Index, File Number E94661
Lead Free Finish/RoHS Compliant
Mechanical Data
Case: GBJ
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Plated Leads, Solderable per MIL-STD-202,Method 208
Lead Free Plating Tin Finish.
Polarity: Molded on Body
Mounting: Through Hole for #6 Screw
Mounting Torque: 5.0 in-lbs Maximum
Marking: Type Number
Weight: 6.6 grams approximate
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GBJ20005-F Diodes 美台 | 当前型号 | 当前型号 |
GBJ20005 美台 | 类似代替 | GBJ20005-F和GBJ20005的区别 |
GBJ35005-BP 美微科 | 功能相似 | GBJ20005-F和GBJ35005-BP的区别 |
