GBJ2001-F

GBJ2001-F图片1
GBJ2001-F图片2
GBJ2001-F图片3
GBJ2001-F图片4
GBJ2001-F图片5
GBJ2001-F图片6
GBJ2001-F图片7
GBJ2001-F概述

GBJ2001-F 管装

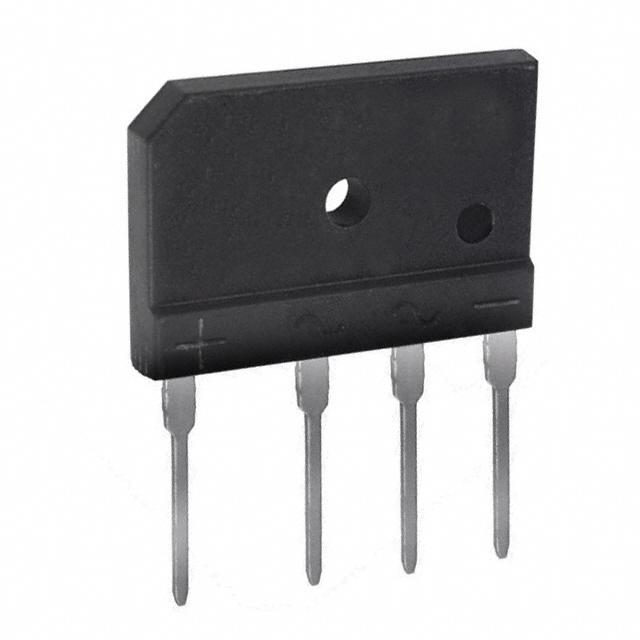

If you want to convert an alternating current input into a direct current, then this full bridge rectifier from Zetex is perfect for you! In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This rectifier has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration.

GBJ2001-F中文资料参数规格
技术参数

额定电压DC 100 V

额定电流 20.0 A

电容 60.0 pF

输出电流 ≤20.0 A

正向电压 1.05 V

最大反向电压(Vrrm) 100V

正向电流 20 A

最大正向浪涌电流(Ifsm) 240 A

正向电流Max 20 A

工作温度Max 150 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

引脚数 4

封装 SIP-4

外形尺寸

长度 30.3 mm

宽度 4.8 mm

高度 24.5 mm

封装 SIP-4

物理参数

工作温度 -55℃ ~ 150℃ TJ

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

数据手册

在线购买GBJ2001-F
型号: GBJ2001-F
制造商: Diodes 美台
描述:GBJ2001-F 管装
替代型号GBJ2001-F
型号/品牌 代替类型 替代型号对比

GBJ2001-F

Diodes 美台

当前型号

当前型号

GBJ2001

美台

类似代替

GBJ2001-F和GBJ2001的区别

GBJ2001-BP

美微科

功能相似

GBJ2001-F和GBJ2001-BP的区别
