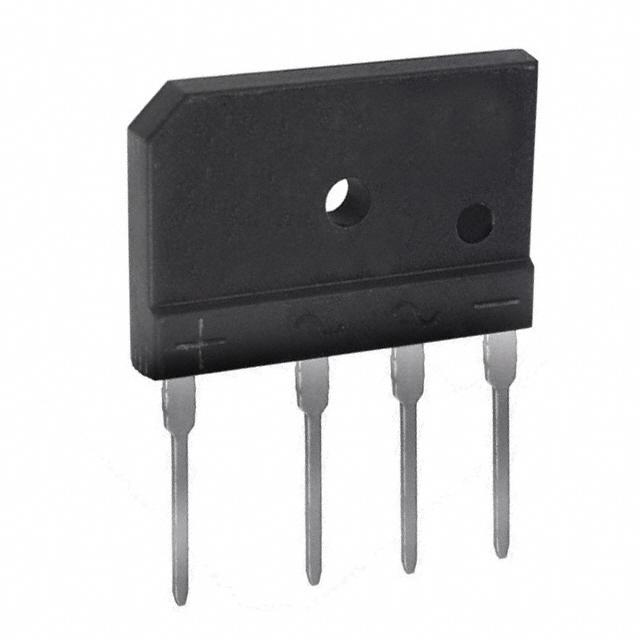

Diode Rectifier Bridge Single 100V 8A 4Pin4+Tab Case GBJ Tube
If you want to convert an alternating current input into a direct current, then this full bridge rectifier from Zetex is perfect for you! In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 150 °C.
额定电压DC 100 V
额定电流 8.00 A
电容 55.0 pF
输出电流 ≤8.00 A
正向电压 1V @4A
最大反向电压(Vrrm) 100V
正向电流 8 A
最大正向浪涌电流(Ifsm) 170 A
正向电流Max 8 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 4
封装 SIP-4
长度 30.3 mm
宽度 4.8 mm
高度 24.5 mm
封装 SIP-4
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
GBJ801-F Diodes 美台 | 当前型号 | 当前型号 |
GBJ801 美台 | 完全替代 | GBJ801-F和GBJ801的区别 |
GBJ2506-BP 美微科 | 功能相似 | GBJ801-F和GBJ2506-BP的区别 |
GBJ2504-BP 美微科 | 功能相似 | GBJ801-F和GBJ2504-BP的区别 |
