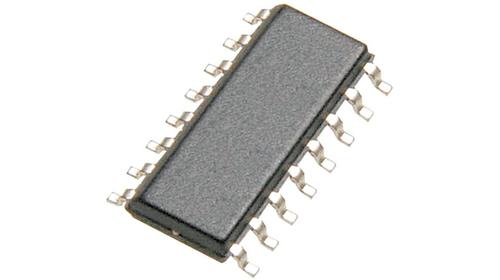

HEF4051BT

NXP  HEF4051BT  芯片, 4000系列 LOCMOS逻辑器件

The is an 8-channel Analog Multiplexer/Demultiplexer with three address inputs S1 to S3, an active low enable input E\\, eight independent inputs/outputs Y0 to Y7 and a common input/output Z. The device contains eight bidirectional analog switches, each with one side connected to an independent input/output Y0 to Y7 and the other side connected to a common input/output Z. The analog inputs/outputs Y0 to Y7 and Z can swing between VDD as a positive limit and VEE as a negative limit. Unused inputs must be connected to VDD, VSS or another input. For operation as a digital multiplexer/demultiplexer, VEE is connected to VSS typically ground.

.

Fully static operation

.

5V, 10V and 15V Parametric ratings

.

Standardized symmetrical output characteristics

.

Complies with JEDEC standard JESD 13-B
